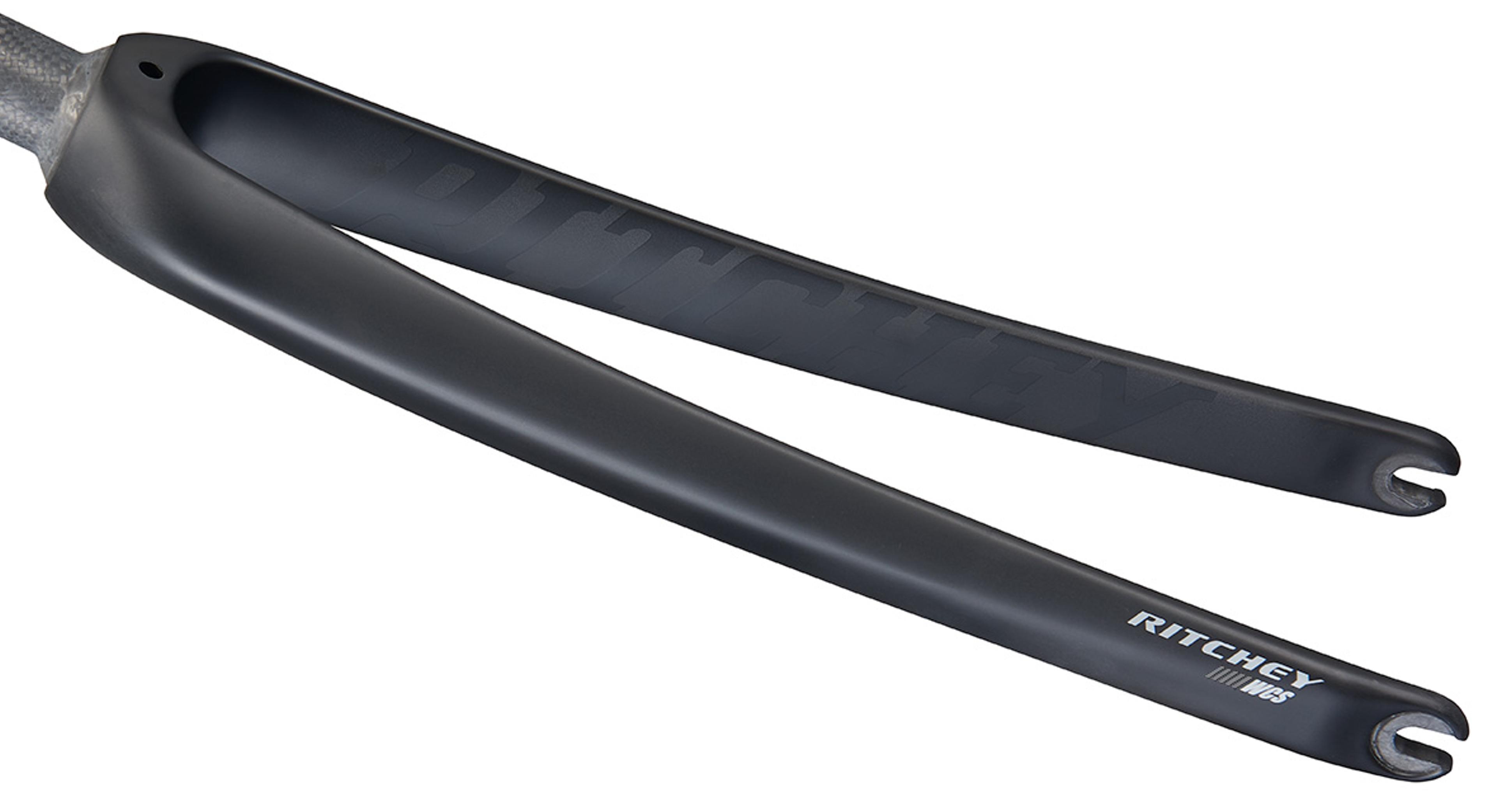

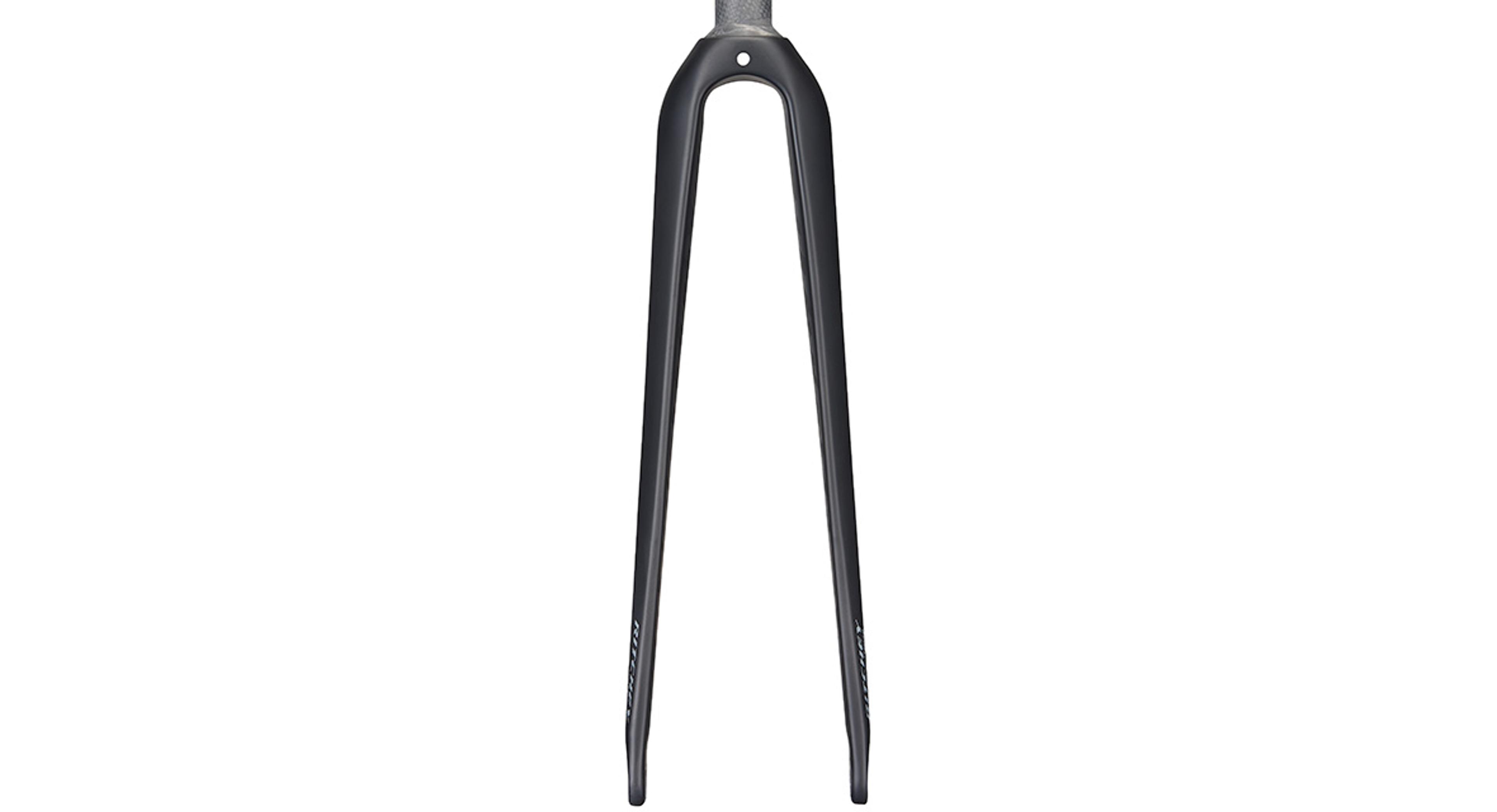

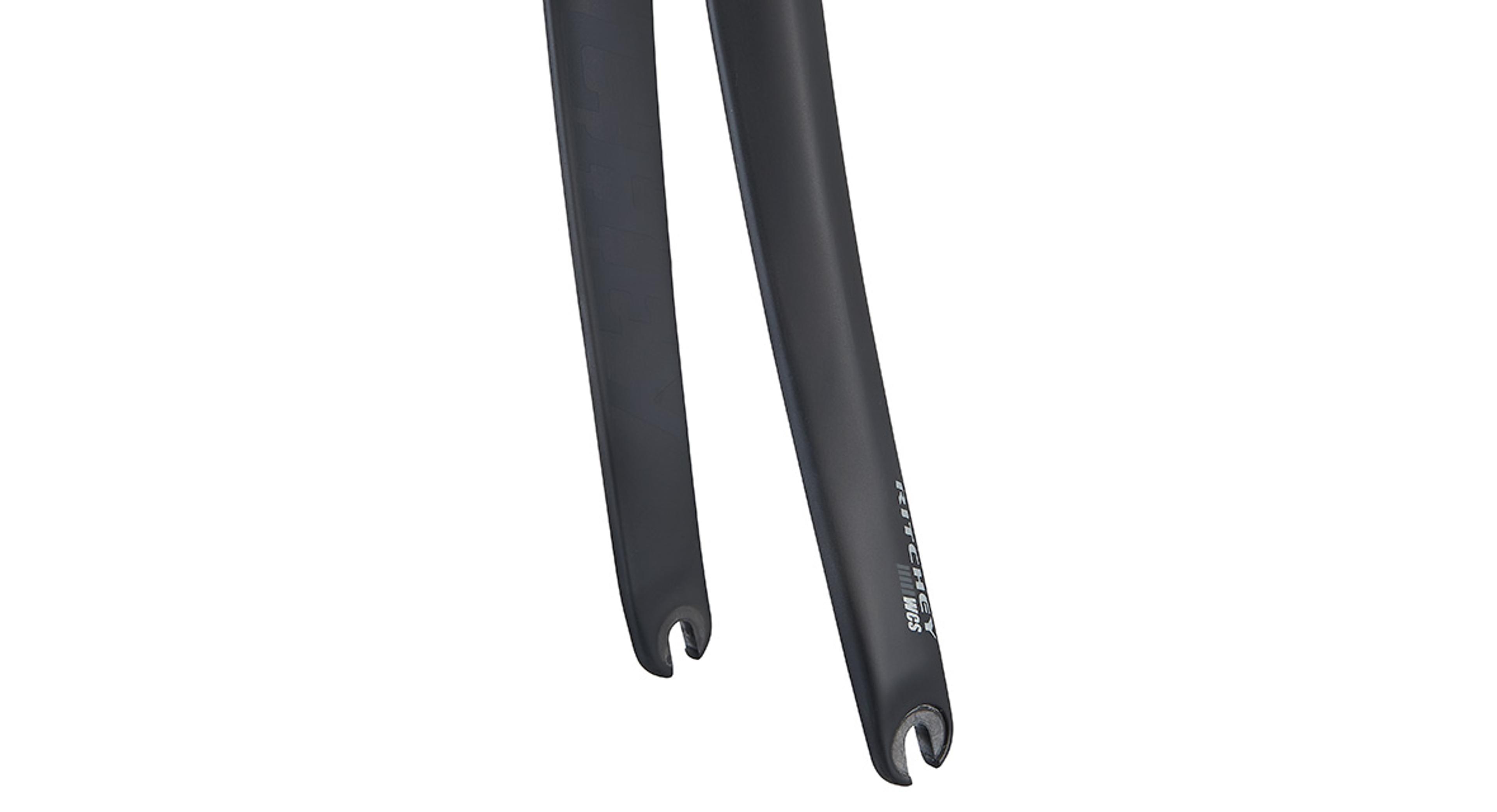

WCS Carbon Road Fork

Steerer Diameter

Description

The one-piece carbon monocoque WCS Carbon Road Fork has been meticulously engineered and painstakingly built to perform with razor-sharp accuracy, and offer a comfortable yet lively riding experience. Built with High Modulus Fiber (HMF), this impeccable road fork offers superior strength and a superb road feel. Smooth internal fiber flow in the crown/steerer area delivers the best force transfer from crown to shaft and increased impact strength. The orientation of the fibers have been optimized to absorb and dissipate loads, which delivers a confident and comfortable ride. The fork also uses various fiber types based on their specific properties to manage different load types as best as possible in the areas in which they occur - such as side load, torsion and impact. The WCS Carbon Road Fork features a 46mm rake, and includes a compression plug. It also fits up to 32c tires, depending on tire make and model.

Tech Specs

Materialcarbon fiber
Steerer1-1/8" straight with integrated 45° crown race
Axle-crown371mm
Rake/Offset46mm
Crown Diameter46mm
Steerer length300mm
Spacing40mm
Axle Compatibility100x9mm quick release (QR not included)
Wheel and tire compatibility700 x 32mm (depending on tire/rim manufacturer)
Minimum Tire Clearance4mm
Brake compatibilityrim brakes
Weight380g (with uncut steerer)
Colormatte UD carbon finish
Fits 1-1/8 headtubes with appropriate EC or IS headset
Fits 44mm headtubes when used with WCS ZS44/30 Lower 33055337010, or Comp Cartridge ZS44/30 Lower 33035337006
30mm maximum spacers below stem

Logic Features

Integrated Carbon crown

Integrated Carbon Crown

Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.

Tech Drawing

  • Design
