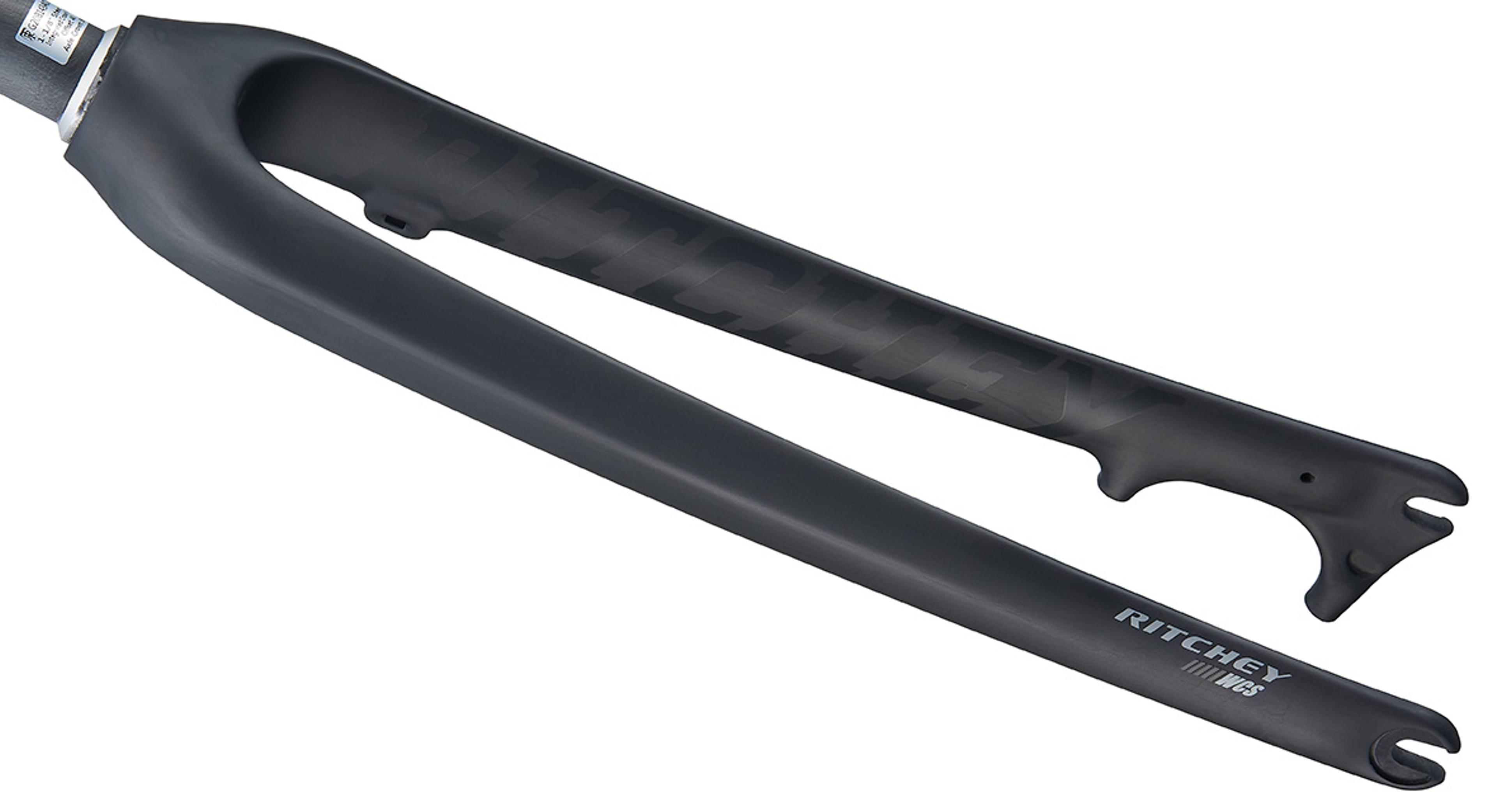

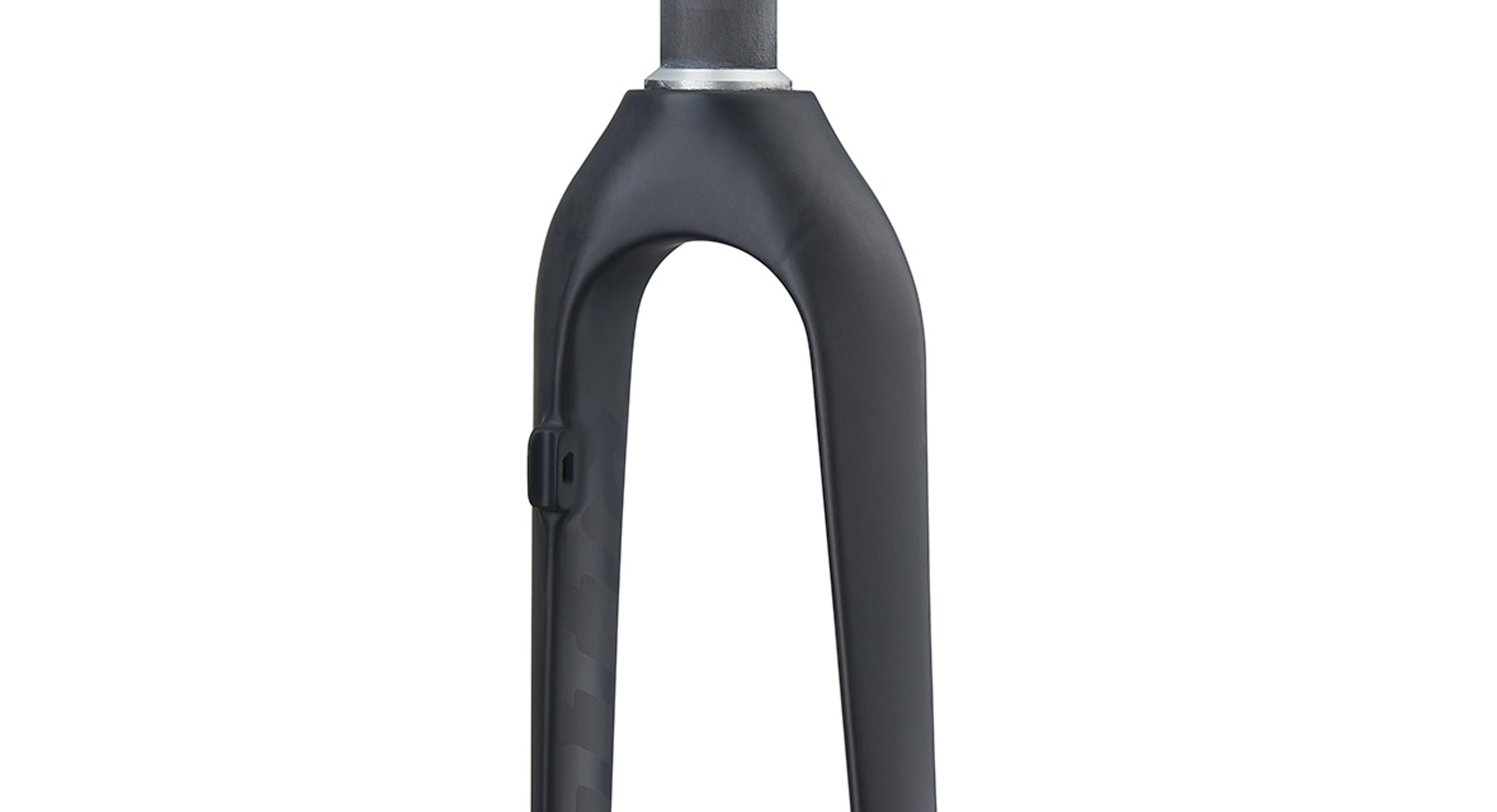

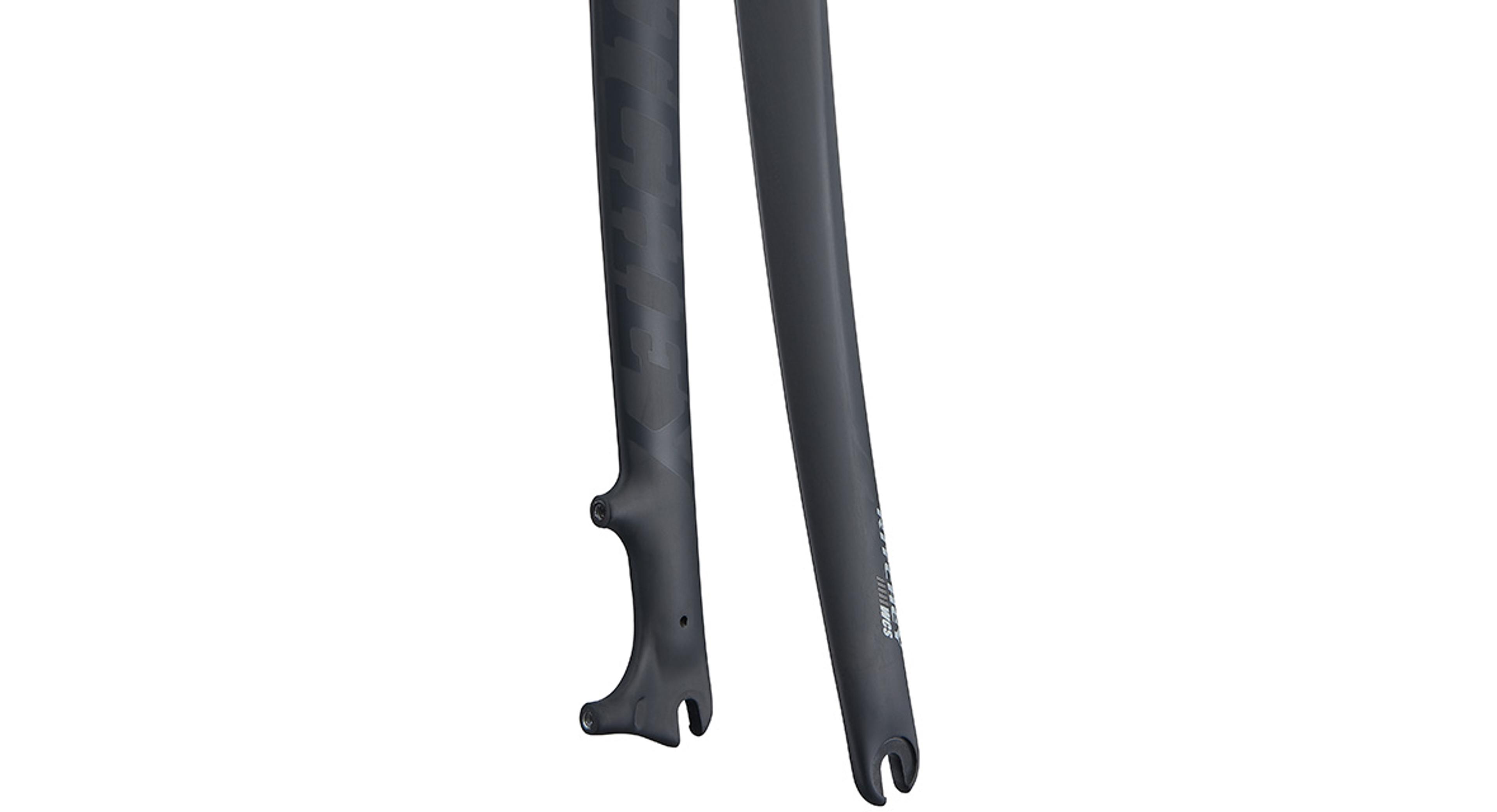

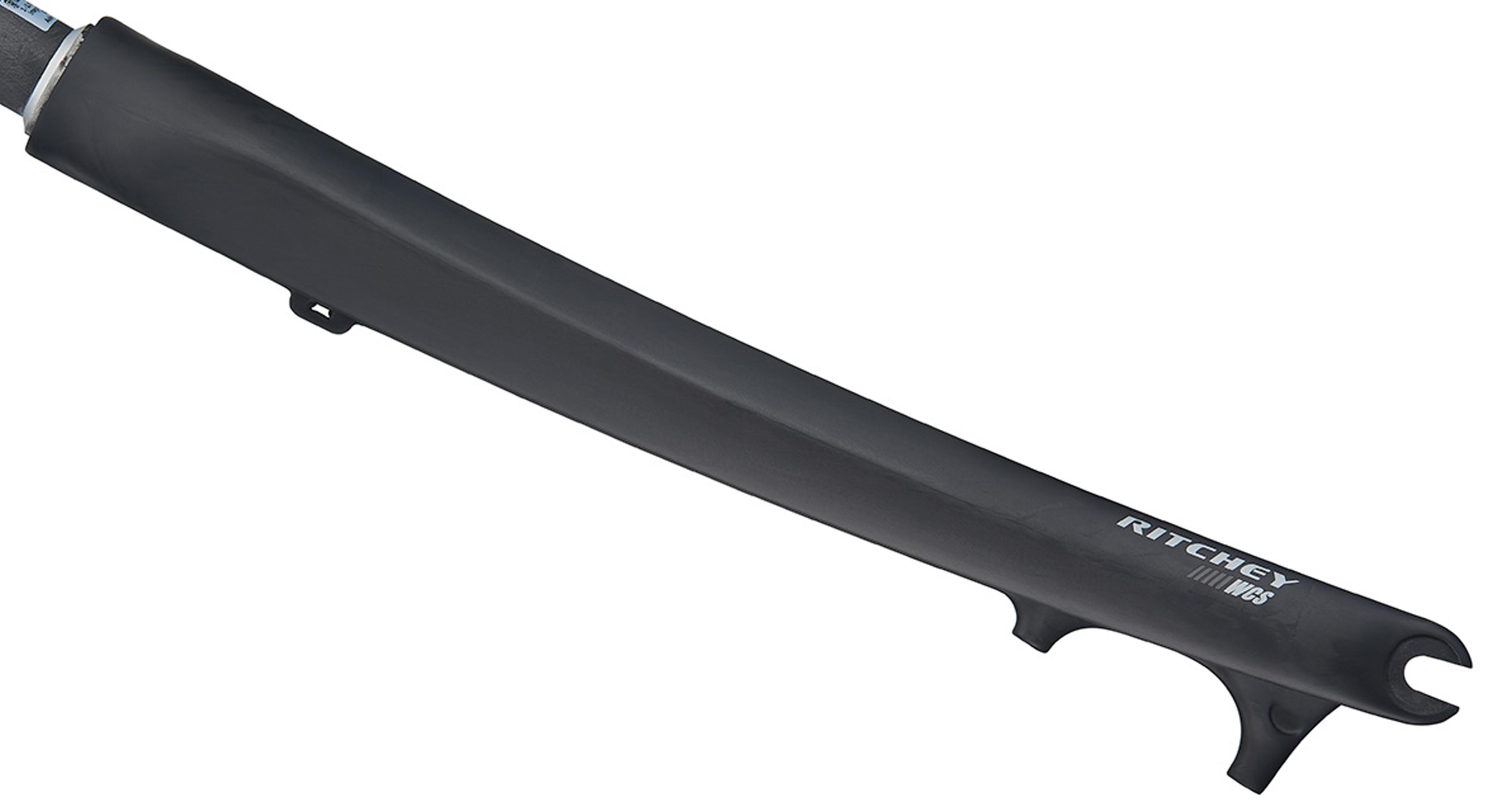

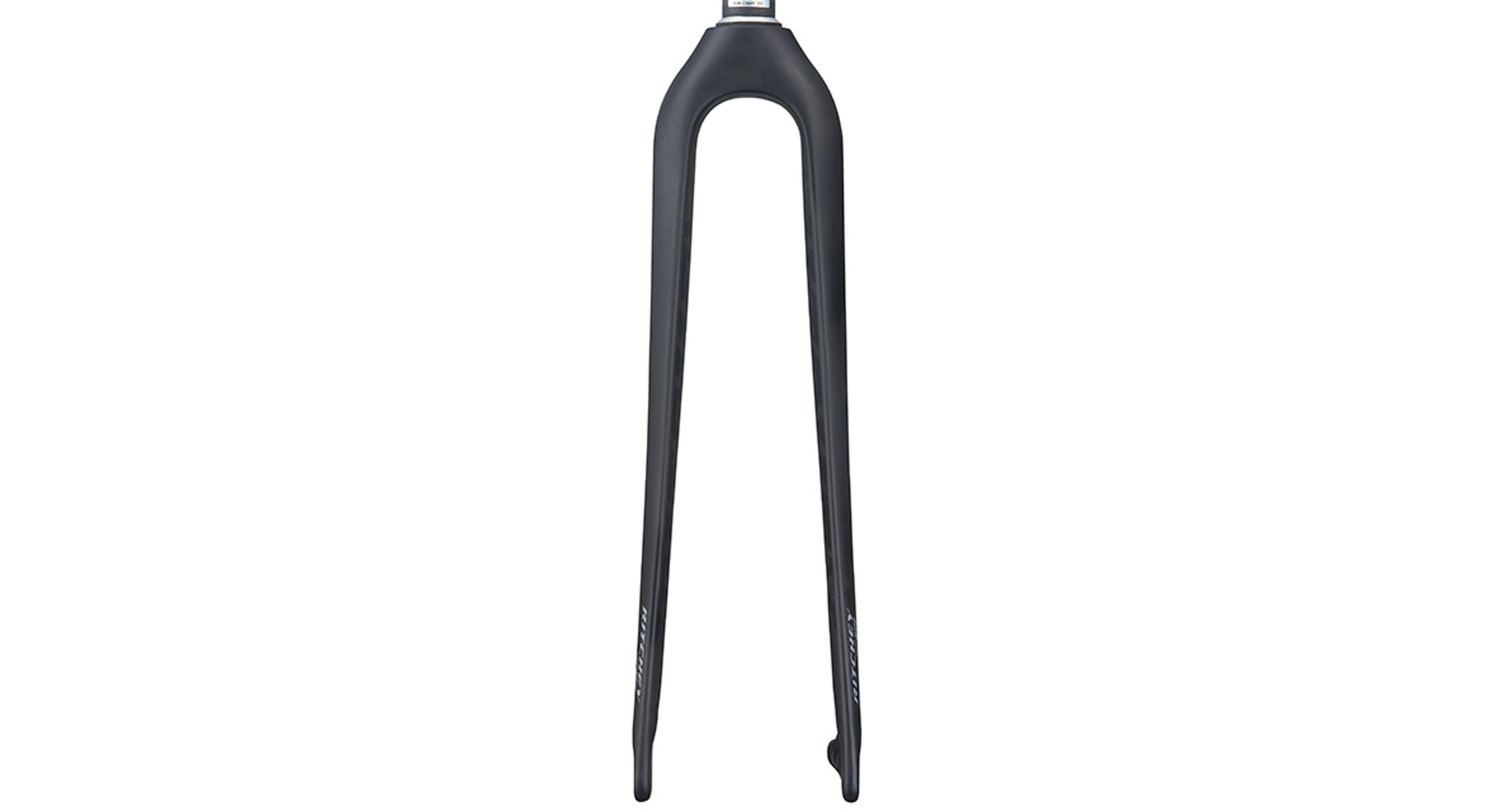

WCS Carbon QR Cross Fork

34556117006

Description

Ritchey's history with cyclocross runs long and deep, sort of like the mud sections of your favorite 'cross course. The WCS Carbon Cross Disc Fork is designed from the ground up to manage the unique stresses a disc brake demands – including a carbon layup that resists twisting under hard braking. Decades of experience between the course tape, and building the bikes and components designed to win, inform the performance and design details of this fork. It employs a monocoque construction, it's compatible with standard and integrated headsets, and features carbon dropouts and disc mount.

Tech Specs

Materialcarbon fiber
Fork length395mm
Rake/Offset45mm
Crown Diameter45mm (1-1/8")
Steerer length300mm
Spacing54mm
Axle Compatibility100x9mm quick release (QR not included)
Wheel and tire compatibility700 x 45mm (depending on tire/rim manufacturer)
Minimum Tire Clearance6mm
Disc brake rotor compatibility140 / 160mm
FinishUD matte carbon
Weight484g (with uncut steerer / not including axle)
Post Mount disc brake
1-1/8" straight steerer with integrated 45° crown race
Fits 1-1/8 headtubes with appropriate EC or IS headset
Fits 44mm headtubes when used with WCS ZS44/30 Lower 33055337010, or Comp Cartridge ZS44/30 Lower 33035337006
Incompatible with Comp Cartridge EC, Classic EC, EC Threadless and RL1 Ritchey headsets
The fork is designed to better fit the IS headset

Logic Features

Integrated Carbon crown

Integrated Carbon Crown

Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.

Tech Drawing

  • Design
