NEW

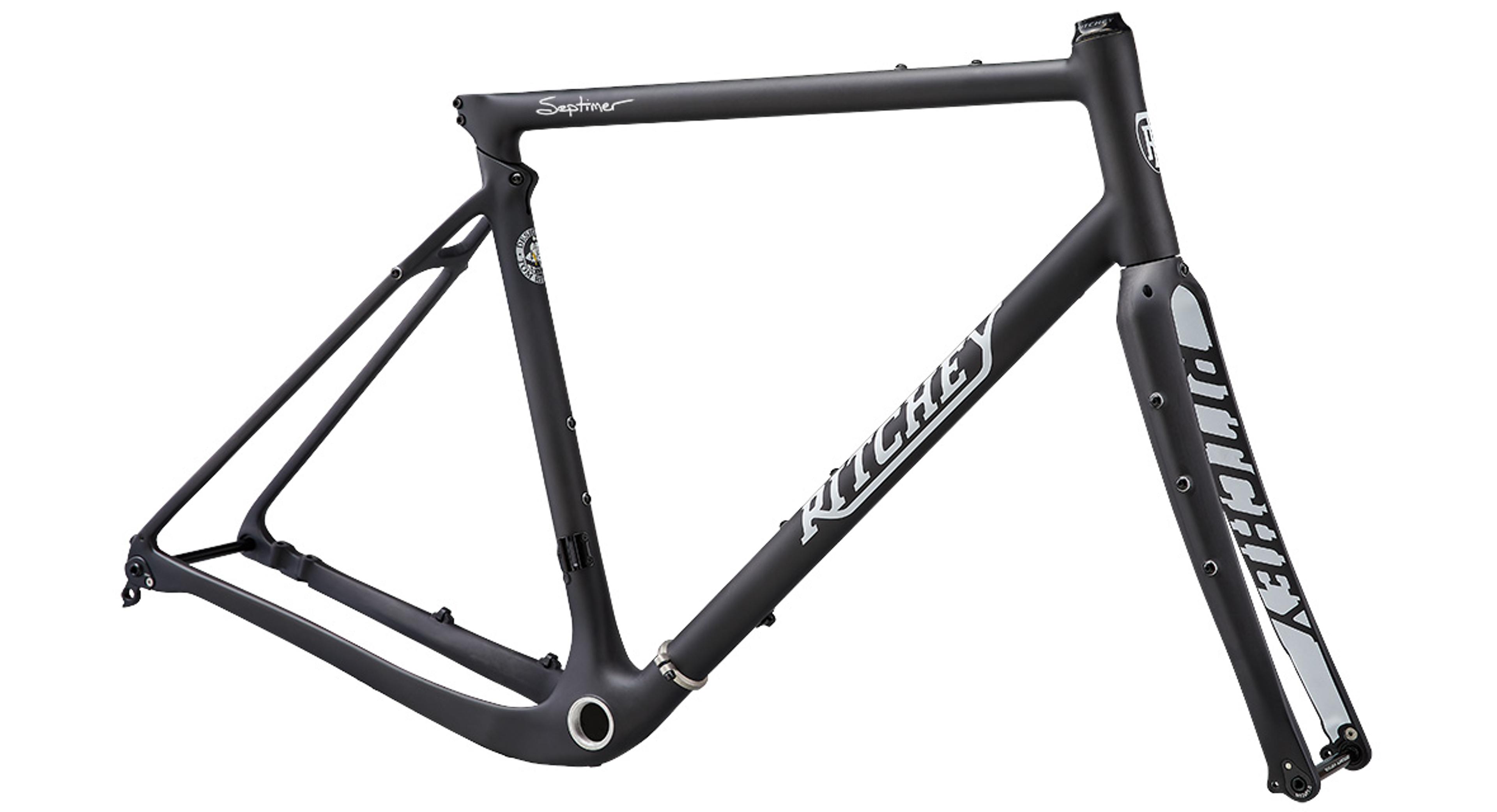

Septimer Break-Away Carbon Frameset

Size

Description

Named after the Septimer Pass, which stretches between the border of Switzerland and Italy, Ritchey’s Septimer spans Tom Ritchey’s concept of an all-road bike that doesn’t take sides. Tom designed this bike to be the one bike you’ll ever need, whether you’re uncovering stealthy new routes that have so far stayed hidden, or your need for adventure snaps the tether that’s kept you grounded until now.

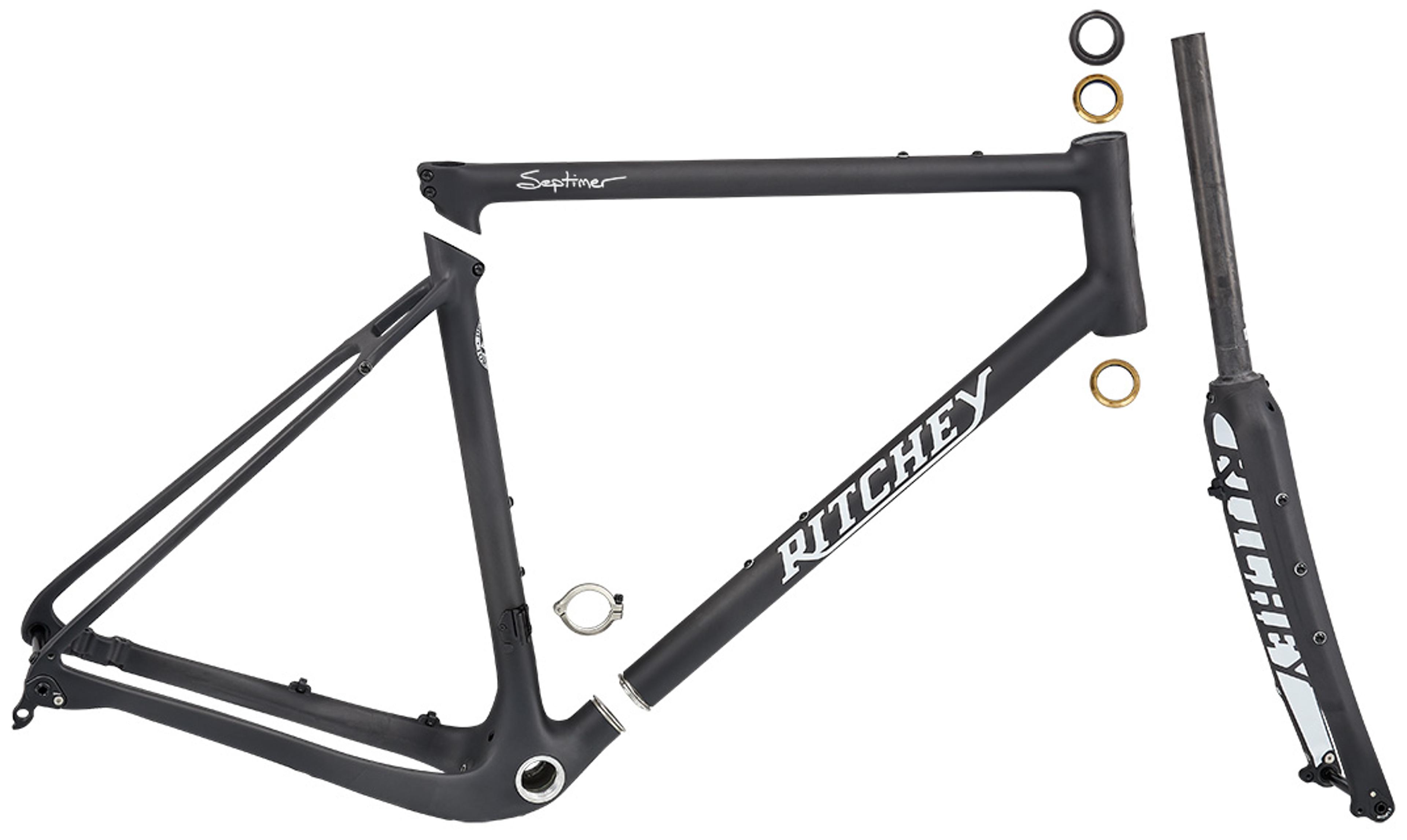

To approach the pass from the south, Ritchey’s Septimer gives you a lightweight carbon fiber frame and fork — ideal for reaching its highest point. The road, which hasn’t changed much in a couple thousand years, can be overcome with 700 x 48c tires. To get there — or almost anywhere — Ritchey’s patented Break-Away system lets you easily and quickly disassemble your bike to fit into its own sturdy travel case. Once at your destination, the bike assembles with ease, allowing you to set off on your journey without wasting a moment. External cable routing also takes away some of the hassle of prepping your bike for traveling. Multiple mounts keep your gear within easy reach to keep the adventure in motion. Compatible with 1x or 2x cranksets for pedaling toward a distant destination or climbing an ancient pass.


Tech Specs

Frame

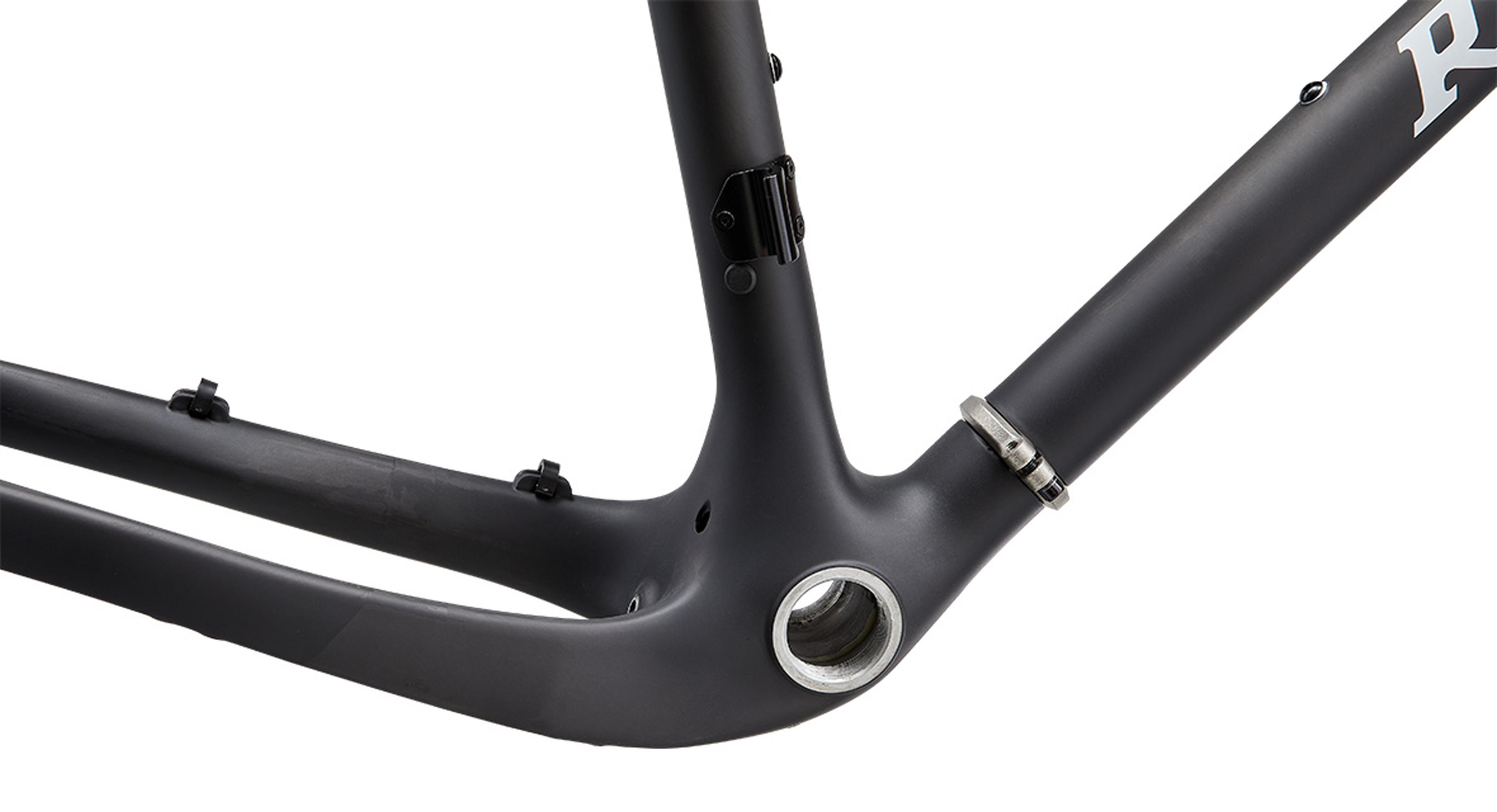

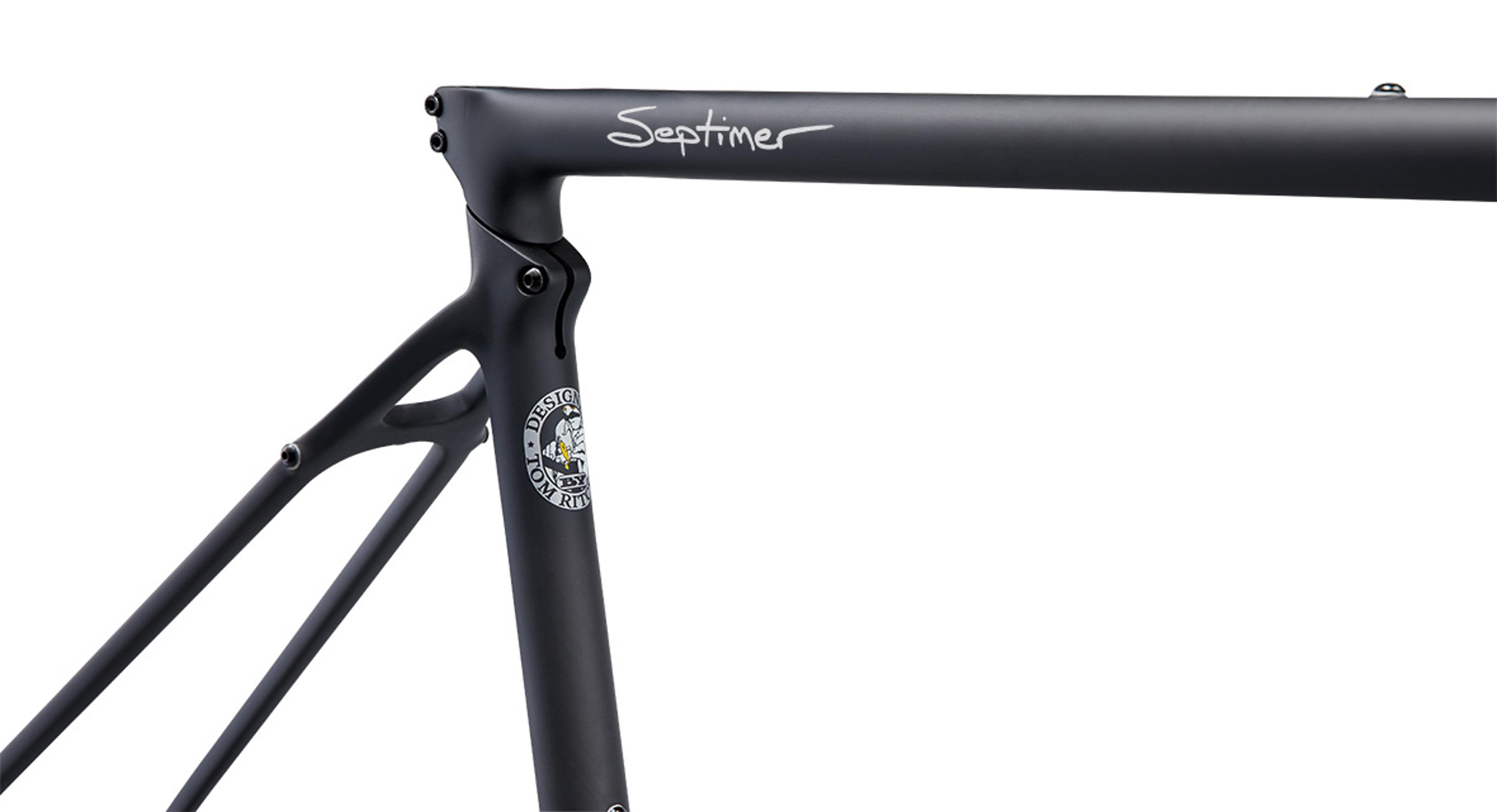

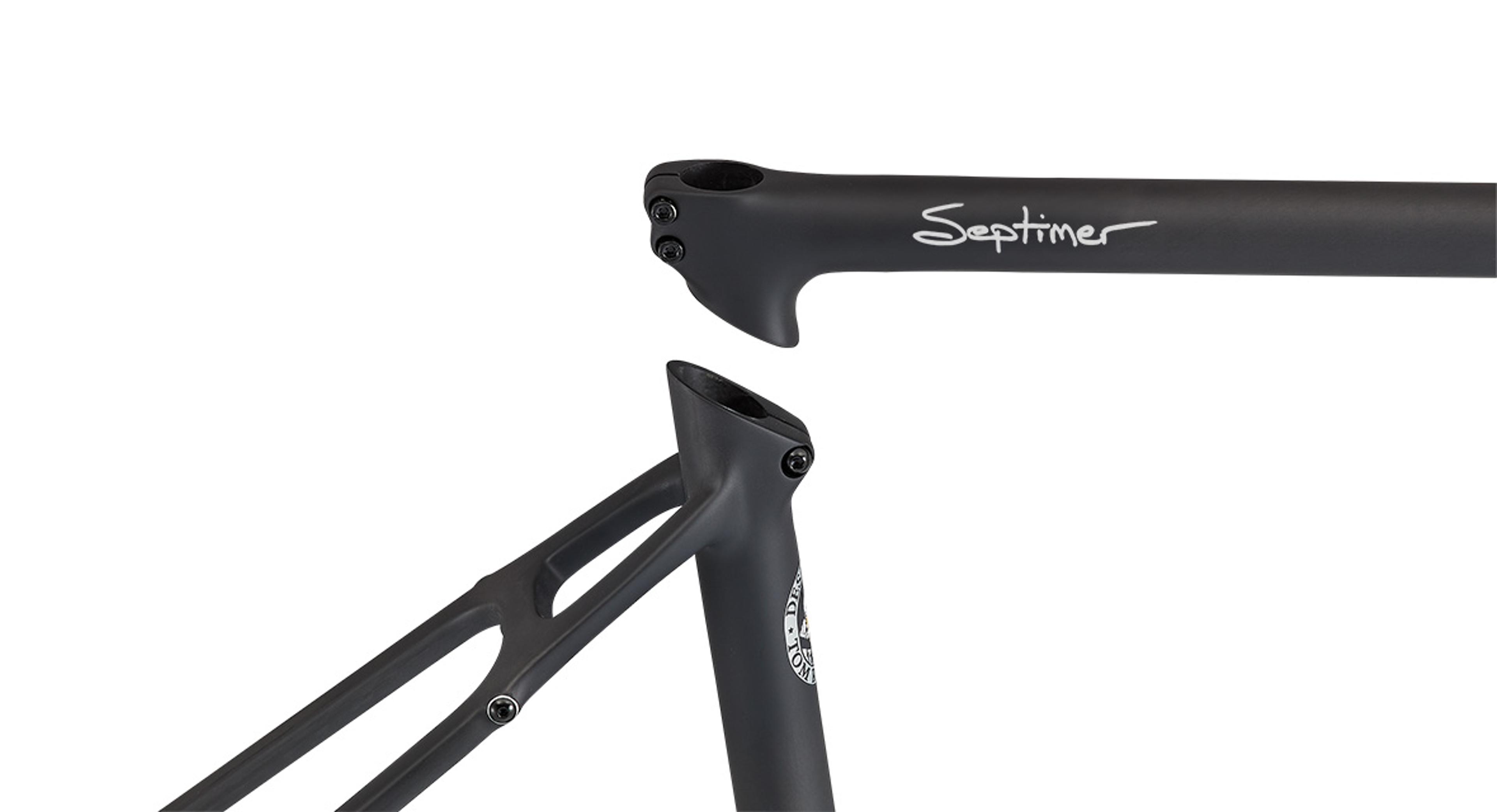

Patented Ritchey Break-Away® design
Materialcarbon fiber with stainless steel joints
27.2mm seat tube with integrated seat collar (max torque setting: 5Nm - minimum seatpost insertion: 110mm)
Bottom bracket68mm - English threaded
142mm spacing (12mm alloy thru-axle included)
Can accommodate 1X or 2X chainrings
Crankset min/max ring sizesingle 36 to 46t (chain line 49.7mm) - double 46/30t to 50/34t (chain line 47mm)
Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Bottle cage mounts2
Top tube bag mountsYes
Rack and fender mounts
External cable routing
Stealth wire routing for semi-wireless Di2 groupsets (Only compatible with Shimano Di2 EW-SD300 wire for 12-speed)

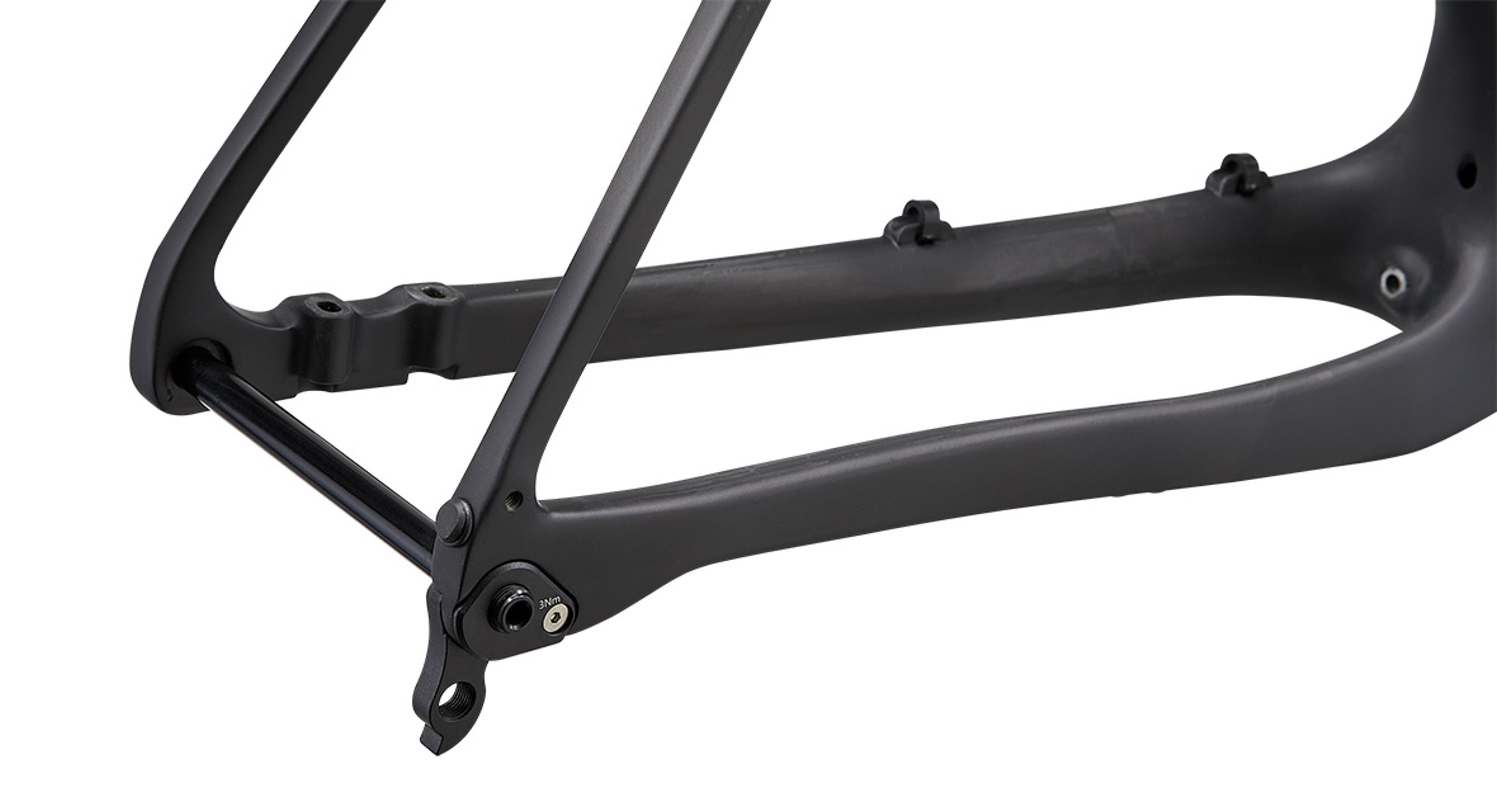

Replaceable derailleur hanger
Removable front derailleur mount

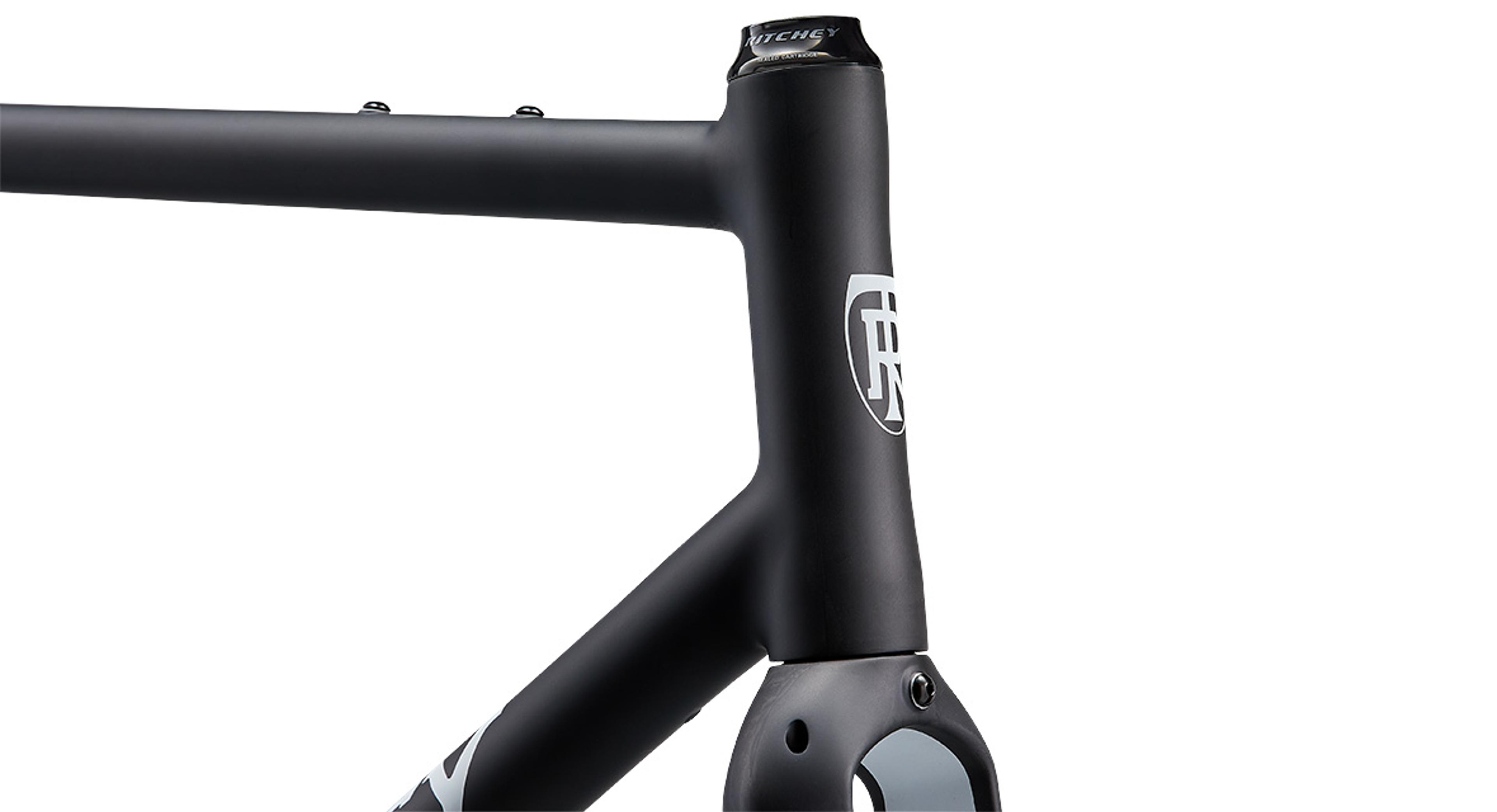

WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

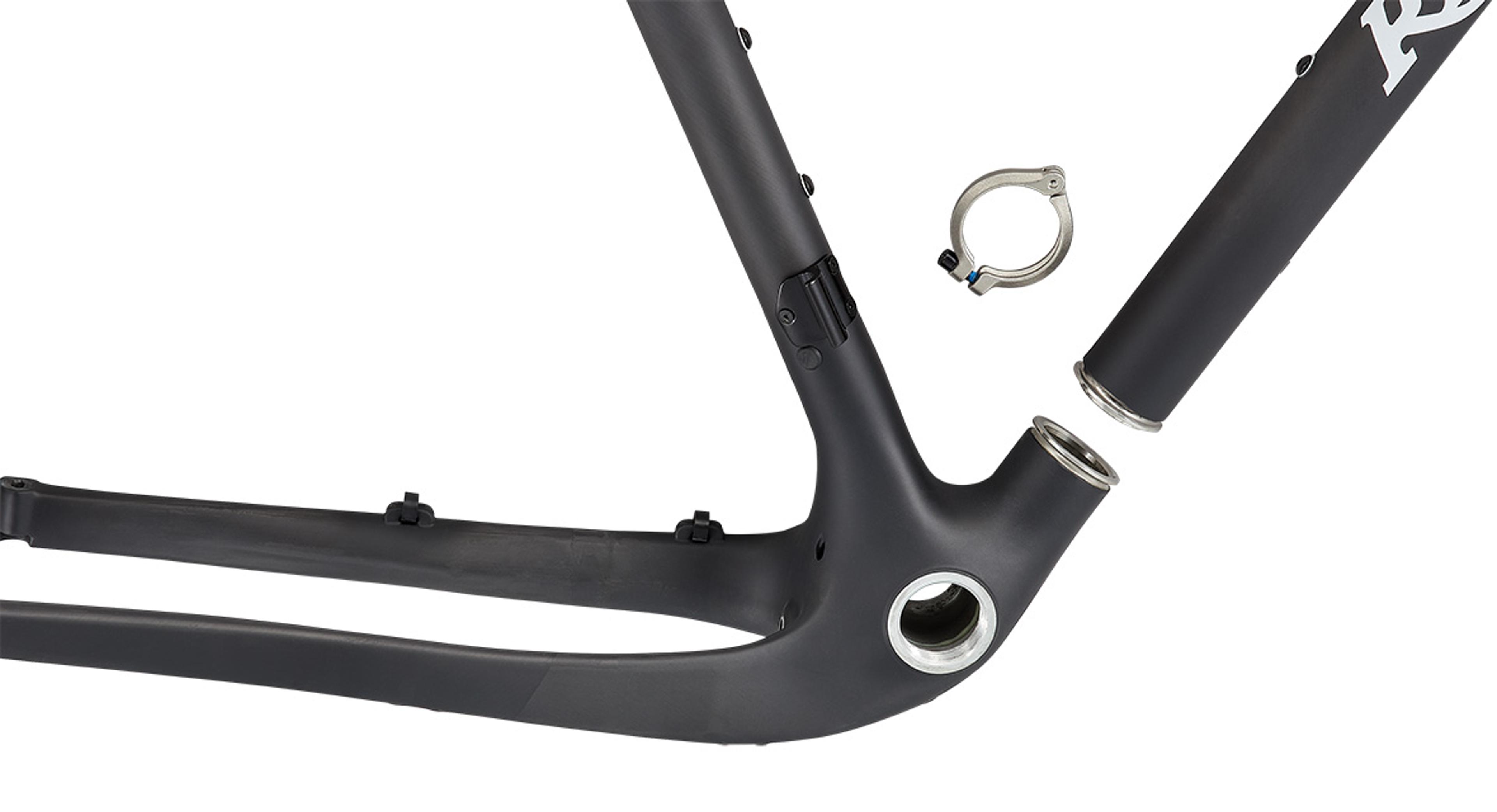

Downtube hinge clamp, included
Stops/guides kit for mechanical groupsets available separately
Fork
Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
1-1/8" straight steerer with integrated 45-degree crown race
Steerer length300mm
Axle-crown393mm
Rake/Offset50mm
100mm spacing (12mm alloy thru-axle included)
30mm maximum spacers below stem
Fork max payload3kg per side
Tire Compatibility
Wheel and tire compatibility700 x 48c tire clearance (depending on tire/rim manufacturer)
Frame spacing60mm
Fork spacing60mm
Brake Compatibility
Flat-mount brakes front and rear140mm (160mm max - adaptors available separately)
Frame flat-mount bracket height20mm
Frame equipped for external hydraulic hose
Hydraulic brake compatible (please see brake manufacturer recommendation for traveling with hydraulic brakes)
Details
SizesS / M / L / XL
Frame weight1,360g (size L - w/o thru-axle)
Fork weight440g (uncut w/o thru-axle)
ColorBlack & White
Downtube Break-Away coupler torque: 5Nm (Do not lubricate clamp or clamping area)

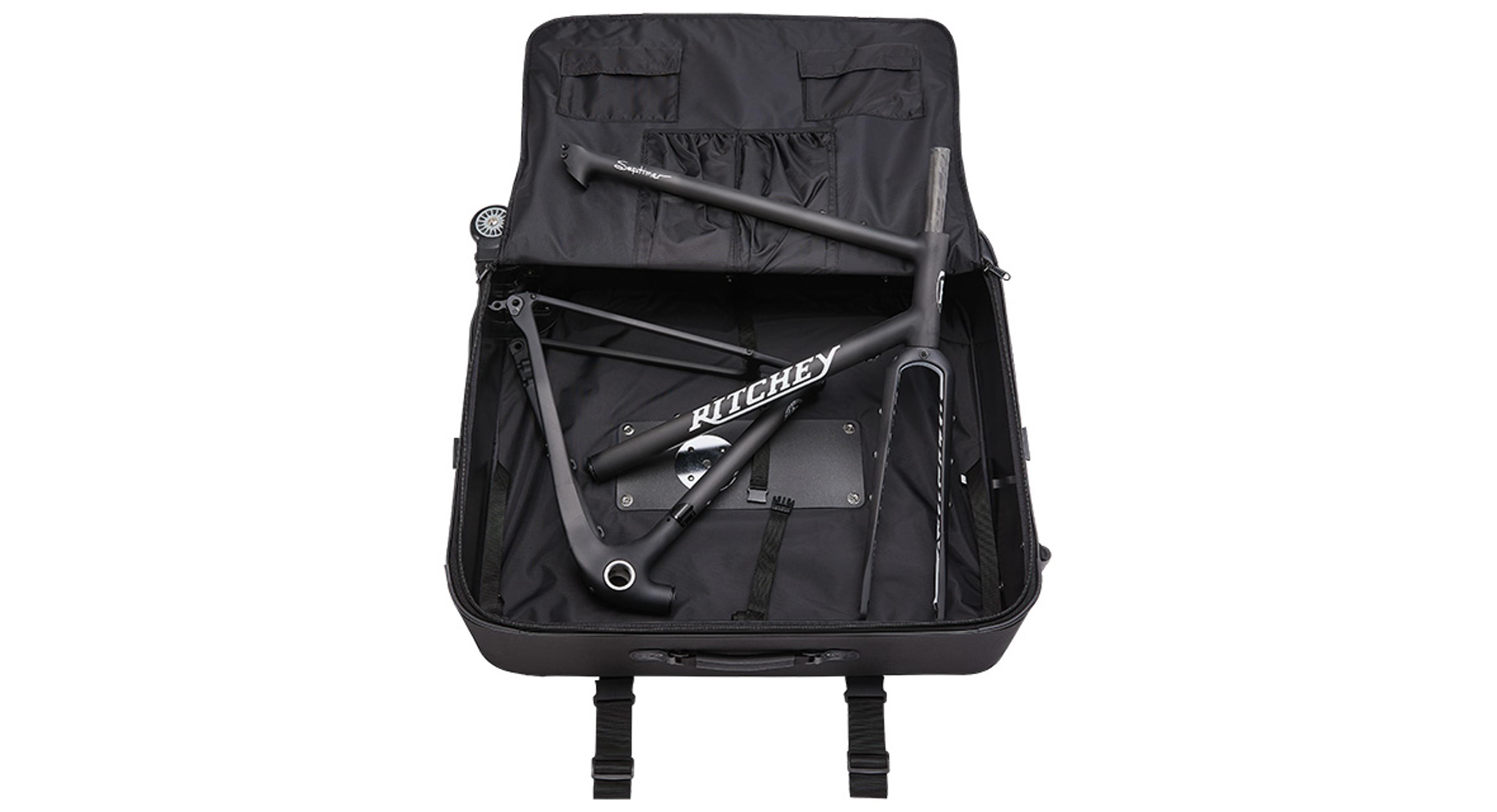

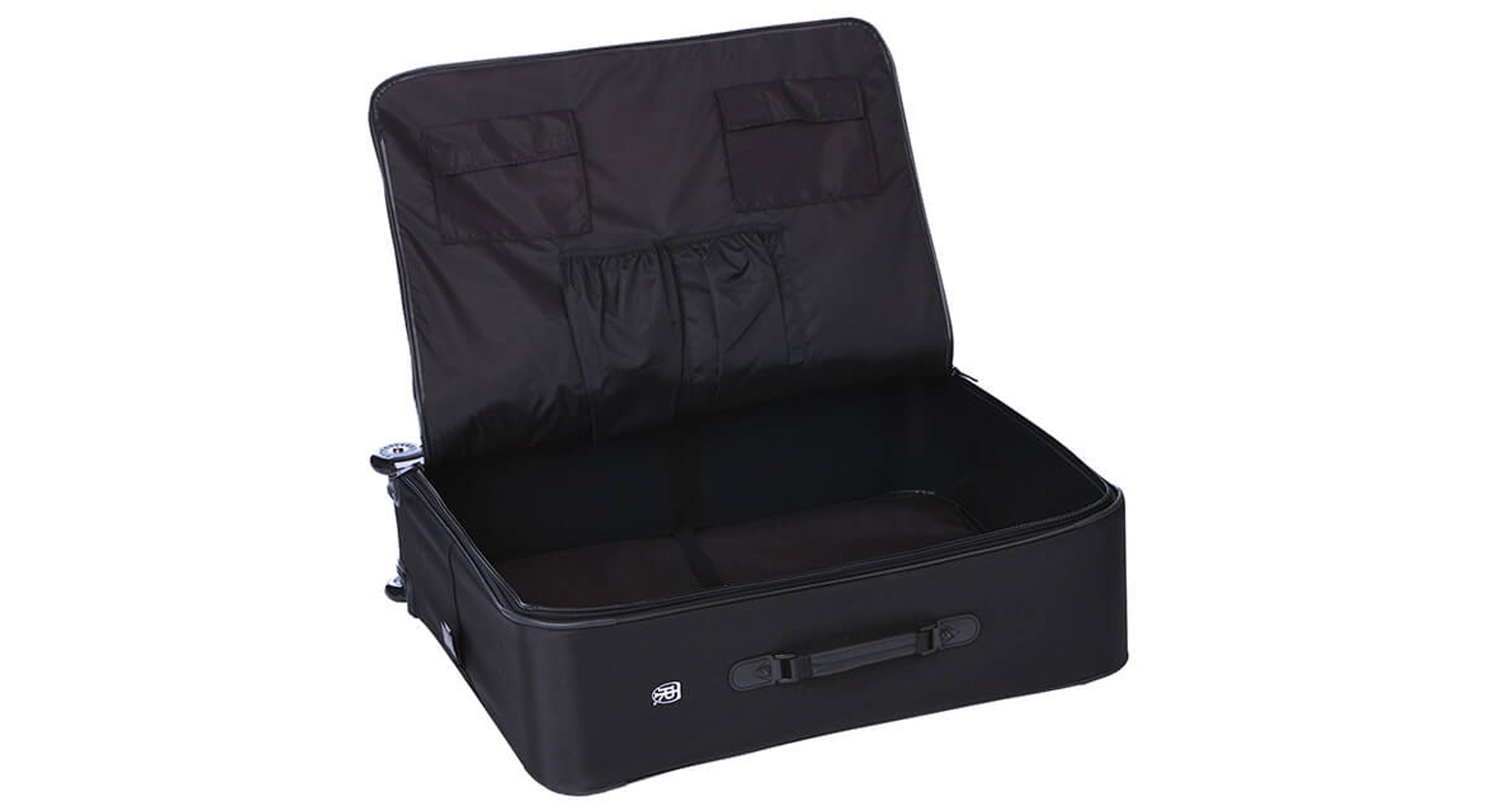

Packs into included travel case (8.5” / 21.6cm W x 26.5” / 67.3cm H x 31” / 78.8cmL w/ wheels)

Logic Features

WCS Logic Tubing

WCS Logic Tubing

Ritchey's proprietary and triple-butted steel tubing developed specifically for the TIG welding process to Tom's specifications.

Multipurpose Mounts

Multipurpose Mounts

Triple mounts on each fork leg offer the ability to carry...well, anything!

Integrated Carbon crown

Integrated Carbon Crown

Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.

How to Pack a Ritchey  Break-Away Bicycle

Geometry

  • Design
  • Design

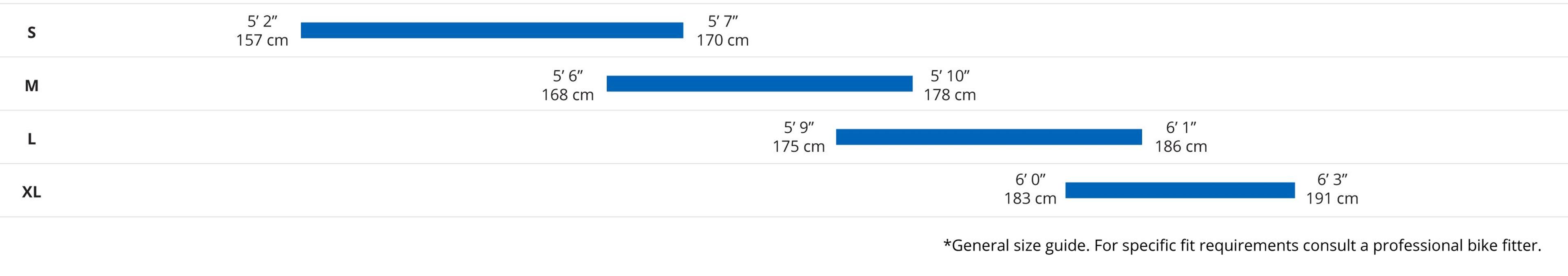

Frame Size
S
M
L
XL
A
Top tube (effective)
535
557
575
603
B
Top tube (actual)
523
543
559
583
C
Seat tube (c-t)
480
515
525
535
D
Seat tube angle
74°
73.5°
73.5°
73°
E
Head tube length
120
150
170
190
F
Head tube angle
71°
70.8°
71.5°
72.5°
G
BB drop
75
75
75
75
H
Chainstay
440
440
440
440
I
Wheelbase
1027
1046
1059
1071
J
Standover height
775
809
824
838
K
Stack
542
569
591
614
L
Reach
380
388
400
415
M
Fork rake
50
50
50
50
N
Axle to crown
393
393
393
393
Post diameter
27.2
27.2
27.2
27.2
