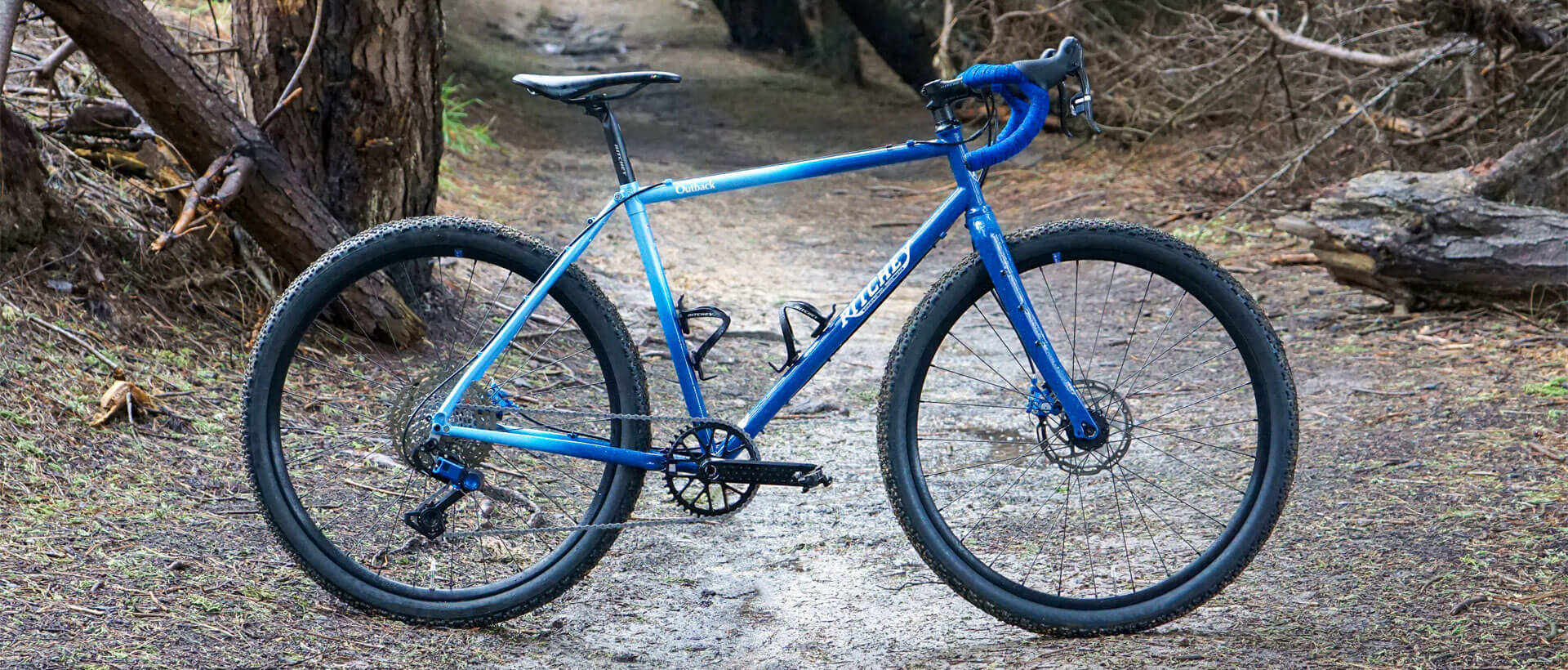

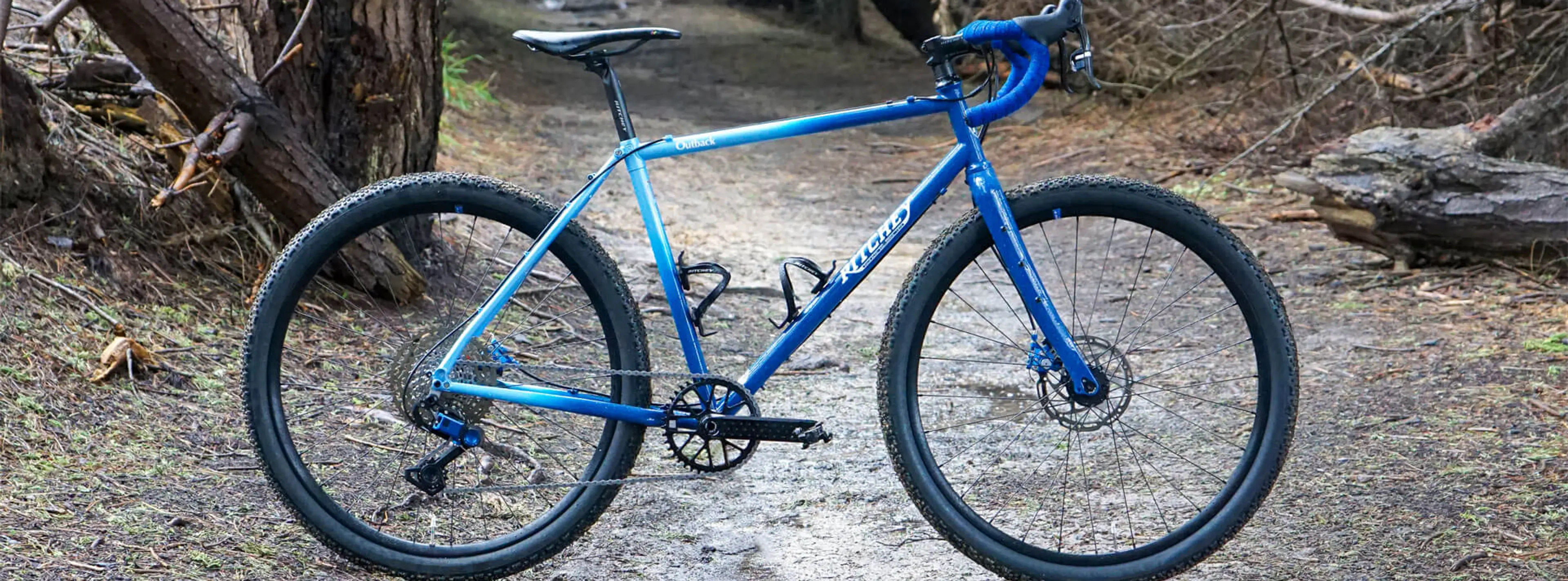

Outback 50th Anniversary Frameset

Size

Description

Tom Ritchey welded up his first bicycle in his parents’ garage more than 50 years ago – when he was only 15-years old. Since then, he has continued riding, researching, designing, and building legendary bicycle frames and components that have inspired generations of cyclists to experience great rides, influenced legions within the bicycle industry, and have won countless championships.

Almost from the start, Tom would point whatever bike he was riding towards the end of the tarmac to wherever that would lead. Along with his mentor Jobst Brandt and an ever-changing cast of riding friends, Tom would ride endless paths, trails and dirt roads on all-day adventures. Those rides nearly 50 years ago (and ever since) directly influence the bikes we ride today, such as the Ritchey Outback - an icon in the gritty world of gravel and adventure bikes.

To celebrate Ritchey’s 50th anniversary and Tom’s enduring and influential spirit of off-road adventure, the 50th Anniversary Outback proudly sports a Half Moon Blue paint scheme - an amazingly beautiful light blue to deep blue fade that truly moves the soul. Additionally, this limited-edition gravel rig is adorned with special Ritchey logos that reference the company's history and the influence Palo Alto, California has had on Tom.

The stunning aesthetics of this special Outback aside, the frameset retains everything the bike is known for. It sports several practical and adaptable features that offer riders the ability to chase epic ride experiences beyond the end of the road and the end of the day. Rack and fender mounts help to keep things dry and expand the load-carrying capacity for longer bikepacking adventures, while clearance for 700c x 48mm or 650b x 2.0in tires opens up a whole new world of possibilities. The frame accepts flat-mount disc calipers, and the all-carbon fiber Ritchey Adventure Fork with multi-purpose mounts on the legs gives you more places to stow the supplies you gather at the last cafe.

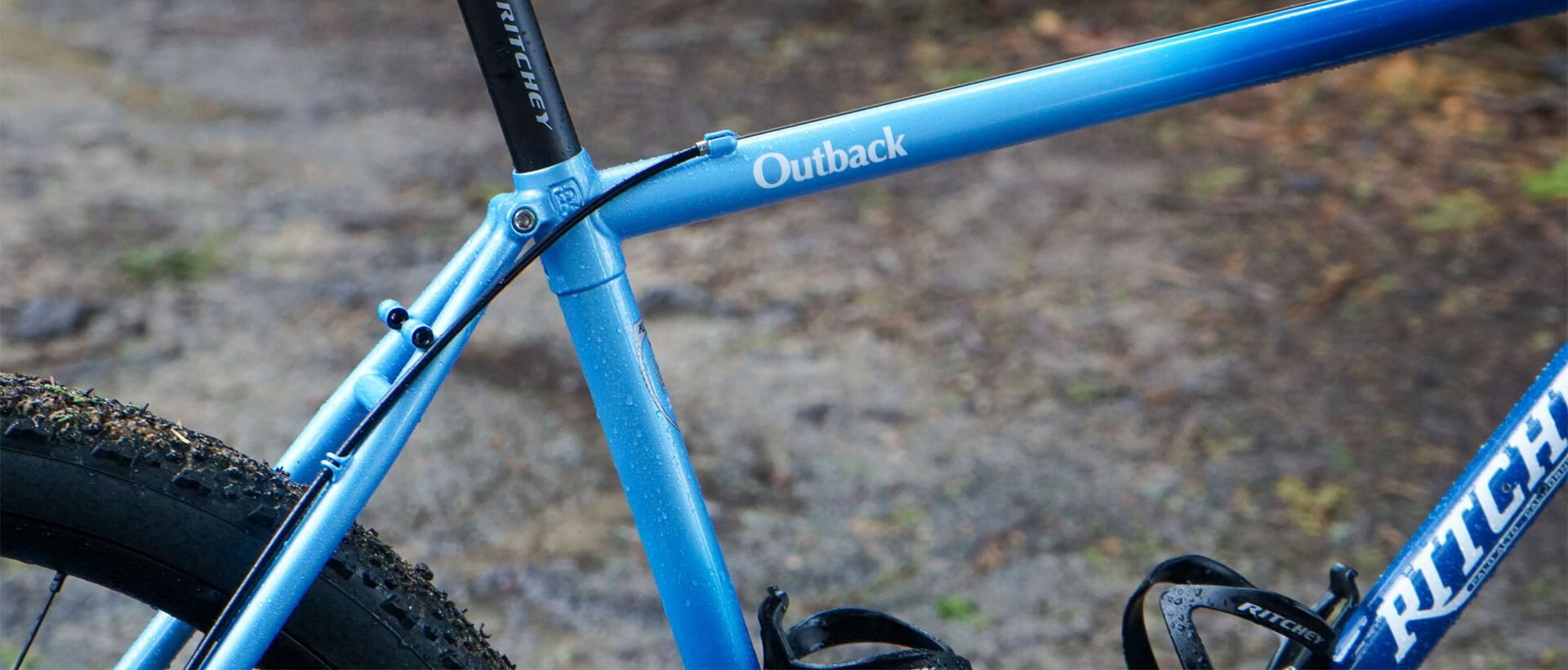

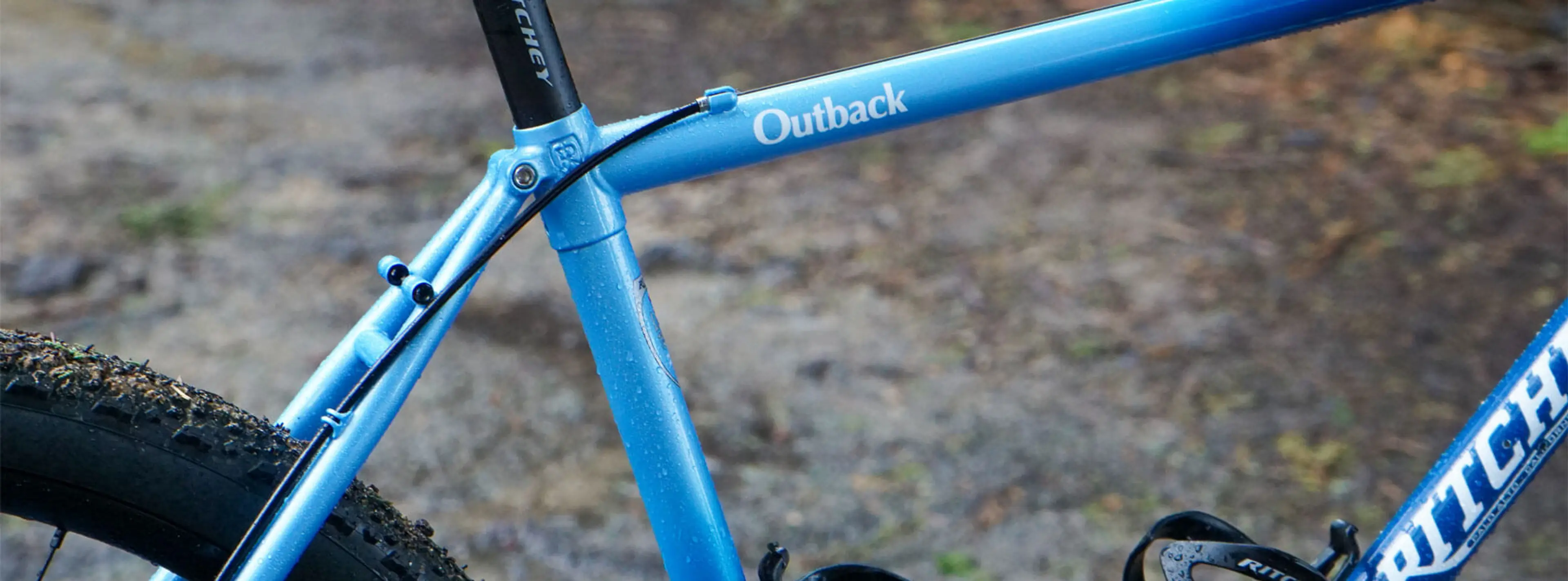

Painstakingly TIG-welded with proprietary triple-butted Ritchey Logic steel tubing, the Outback frame delivers the legendary Ritchey ride quality that’s resilient over the harshest terrain and delightfully responsive when you want to open it up.

Road, off-road, trail, expedition, you name it...the 50th Anniversary Ritchey Outback is designed do it all.

Tech Specs

Frame
Materialheat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Ultra-light forged and machined straight 1-1/8" headtube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Seat tube clamp size28.6mm (2.5Nm max for derailleur clamps and chain guides)
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
Bottom bracket68mm - English threaded
142mm spacing (12mm alloy thru-axle included)
Crankset min/max ring size - single36 to 46t / double: 46/30t to 50/34t
Can accommodate 1X or 2X chainrings
Chainline49mm
Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Bottle cage mounts
Rack and fender mounts
External cable routing
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
Replaceable stainless-steel derailleur hanger
Fork
New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
1-1/8" straight steerer with integrated 45-degree crown race
Steerer length300mm
Fork length390mm
Axle-crown393mm
Rake/Offset50mm
100mm spacing (12mm alloy thru-axle included)
Fork max payload3kg per side
30mm maximum spacers below stem
Tire Compatibility
Wheel and tire compatibility700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
Frame spacing58mm
Fork spacing60mm
Brake Compatibility
Flat-mount brakes front and rear140mm (160mm max - adaptors available separately)
Frame flat-mount bracket height10mm
Details
SizesXS / S / M / L / XL
Frame weight2,175g (size L - w/o thru-axle)
Fork weight445g (with uncut steerer / not including axle)
ColorHalf Moon Blue

Logic Features

WCS Logic Tubing

WCS Logic Tubing

Ritchey's proprietary and triple-butted steel tubing developed specifically for the TIG welding process to Tom's specifications.

Multipurpose Mounts

Multipurpose Mounts

Triple mounts on each fork leg offer the ability to carry...well, anything!

Integrated Carbon crown

Integrated Carbon Crown

Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.

Best Gravel Bikes of 2020! - Most Supple Bike of the YEAR AWARD!

Geometry

  • Design
  • Design
Frame Size
XS
S
M
L
XL
A
Top tube (effective)
526
541
557
570
581
B
Top tube (actual)
510
524
539
552
563
C
Seat tube (c-t)
440
465
490
515
540
D
Seat tube angle
74°
73.5°
73°
73°
73°
E
Head tube length
115
130
150
170
190
F
Head tube angle
69.5°
70°
70.5°
71°
71°
G
BB drop
70
70
68
68
68
H
Chainstay
453
453
453
453
453
I
Wheelbase
1047
1053
106
1070
1081
J
Standover height
754
773
796
818
839
K
Stack
532
548
567
587
606
L
Reach
373
378
383
390
395
M
Fork rake
50
50
50
50
50
N
Fork Length
390
390
390
390
390
Axle to crown
393
393
393
393
393
Post diameter
27.2
27.2
27.2
27.2
27.2
