Description
BLEM FRAMESET SALE
Built with proprietary triple-butted Logic steel tubing, the Montebello sports increased stack, a longer wheelbase, and a lower bottom bracket than its Road Logic sibling. Such geometrical choices deliver a welcoming and stable ride when you see the sun set and rise again. Other practical features include fender and rack mounts, which Ritchey fans have been asking for.
This unique frameset also includes the new WCS Carbon Brevet Fork designed specifically for the Montebello. With clearance for 40c tires without a fender — or 36 with a fender, this fork has special mounting options for either a porteur or lowrider rack, and threaded drilling in the crown for attaching rack lights. Ideal for long rides, internal Dynamo routing is fast becoming standard among Ritchey adventure forks. And, of course, the Brevet Fork sports the hallmark of Ritchey forks – a 1–1/8th straight steerer for a precise yet forgiving ride experience.

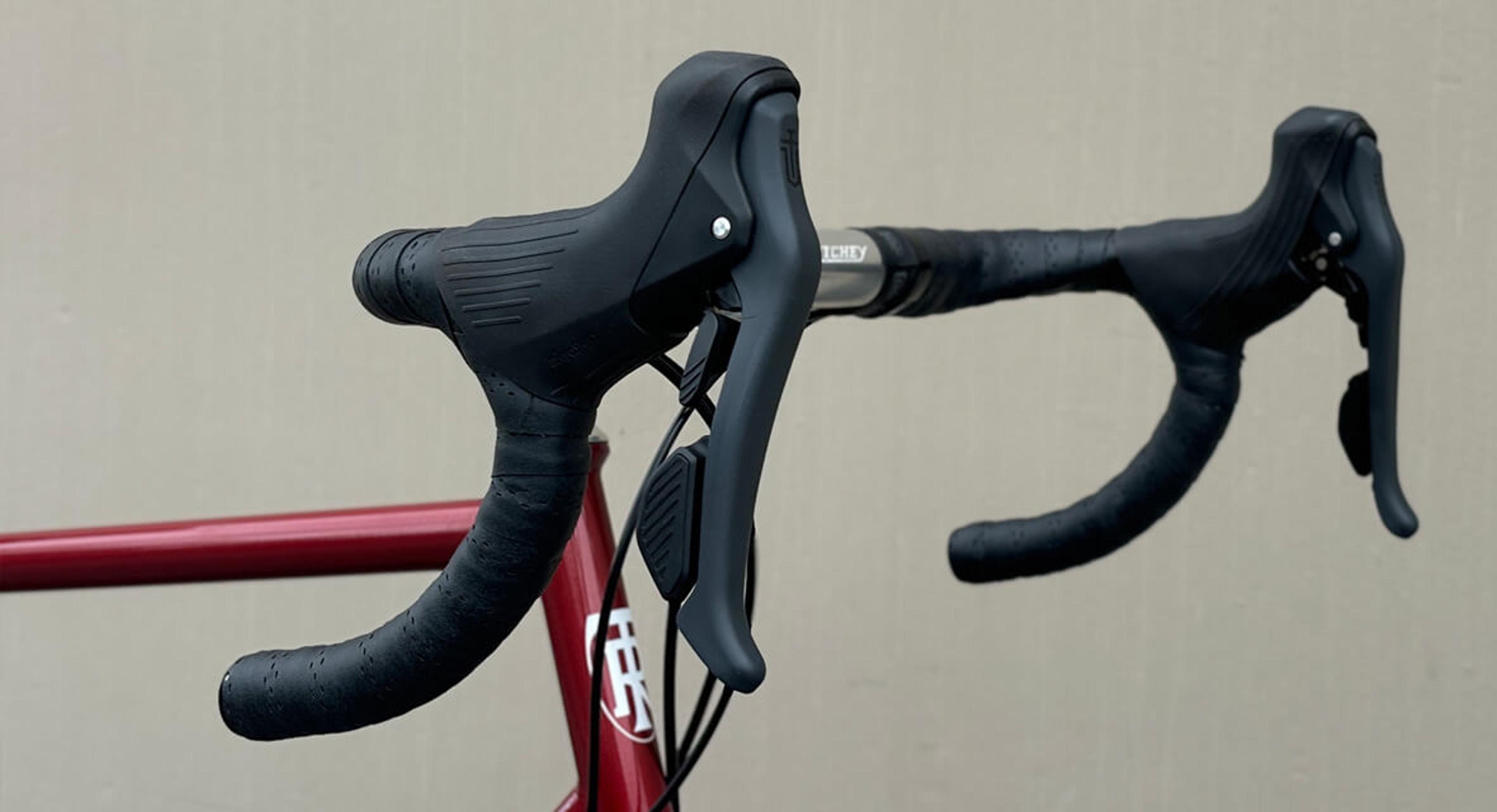

NOTES: This Demo/photo bike has reached the end of its life with Ritchey. Now's your chance to own Ritchey's latest road bike built with MicroShift Sword components, and mechanical disc brakes. Cockpit is entirely Classic line components with a Classic Zero Seatpost, Classic C220 stem and Classic NeoClassic Bars. Wheels are Classic Zeta Disc with Ritchey Alpine JP 35c tires.

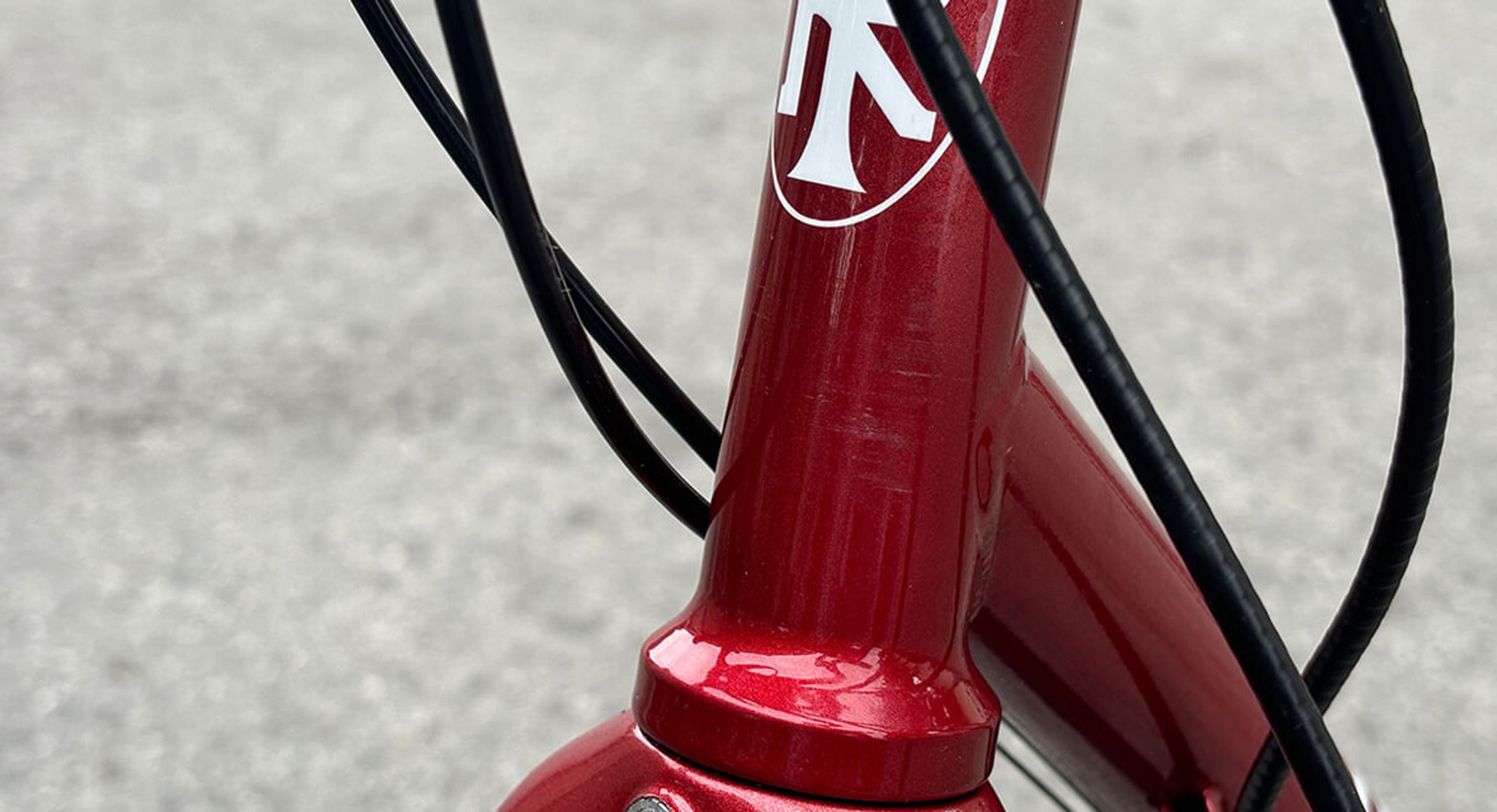

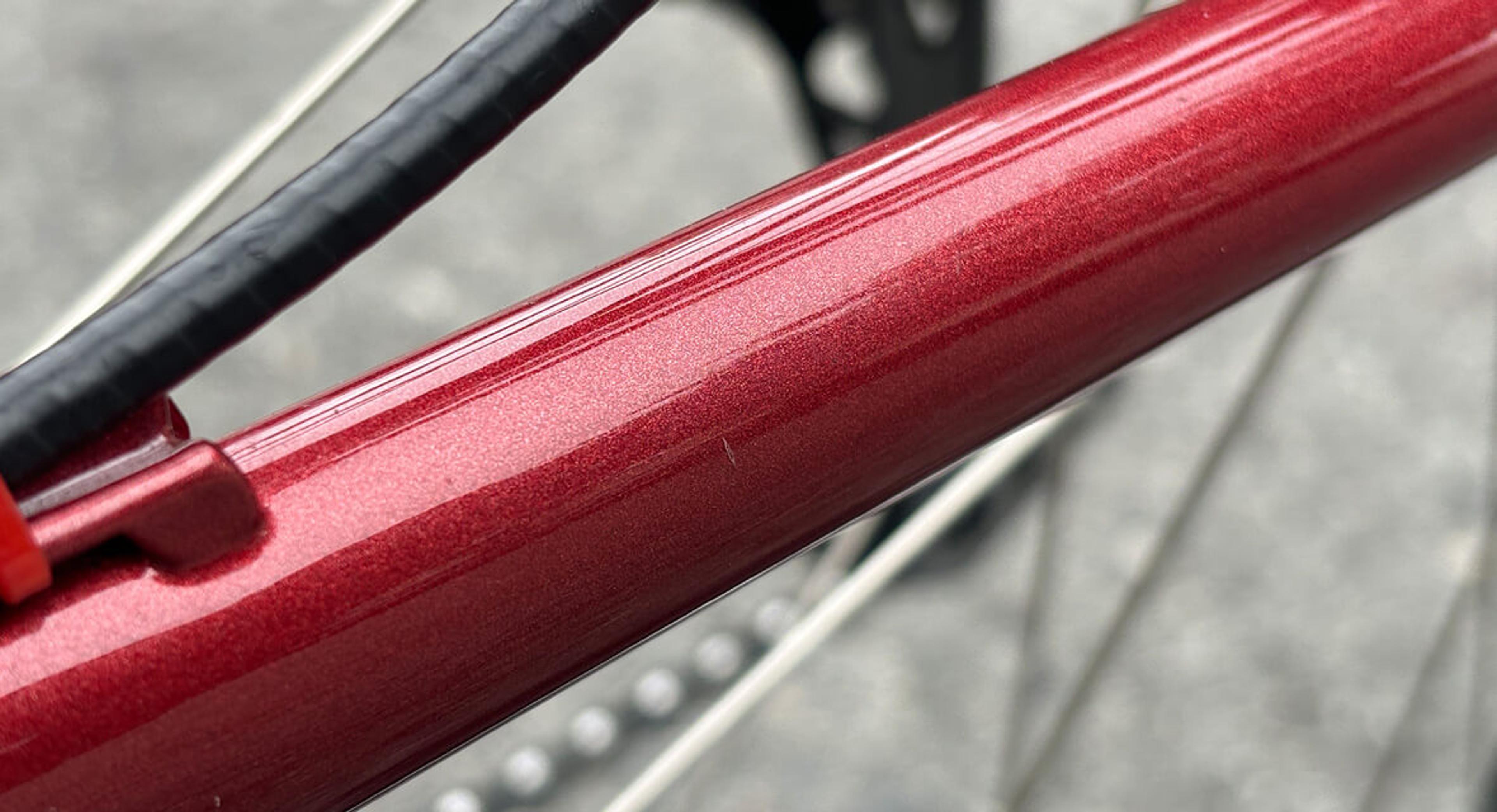

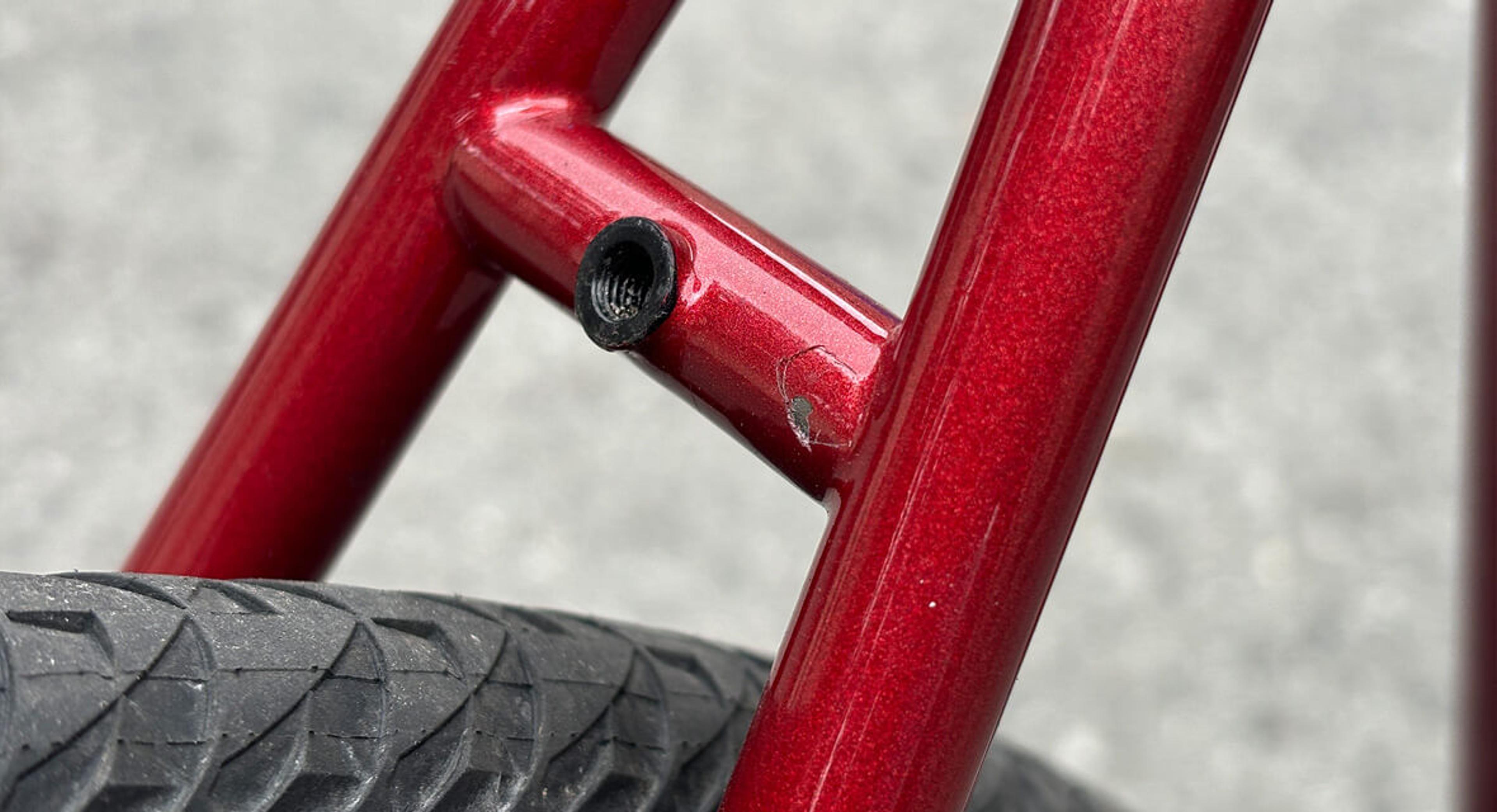

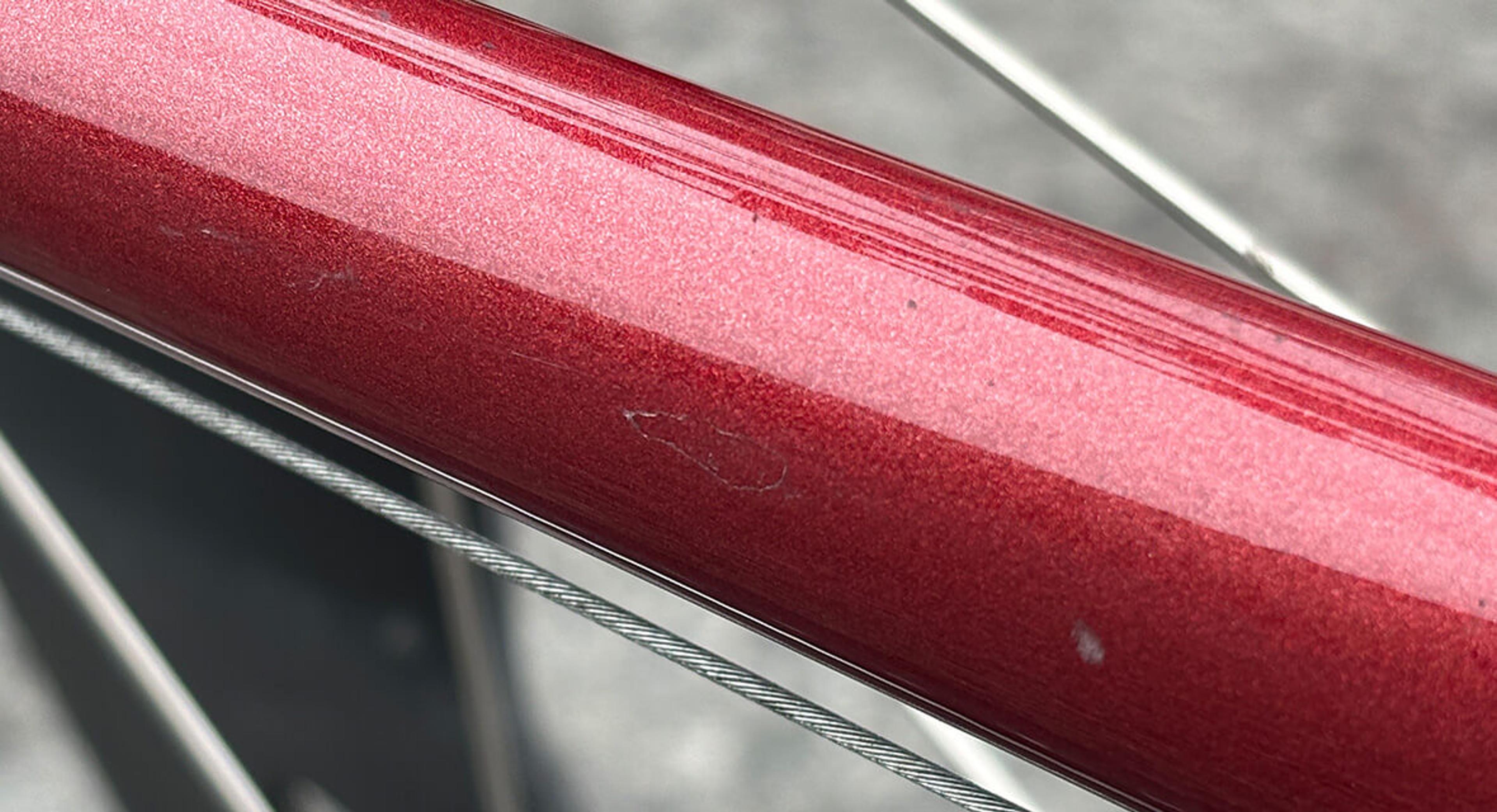

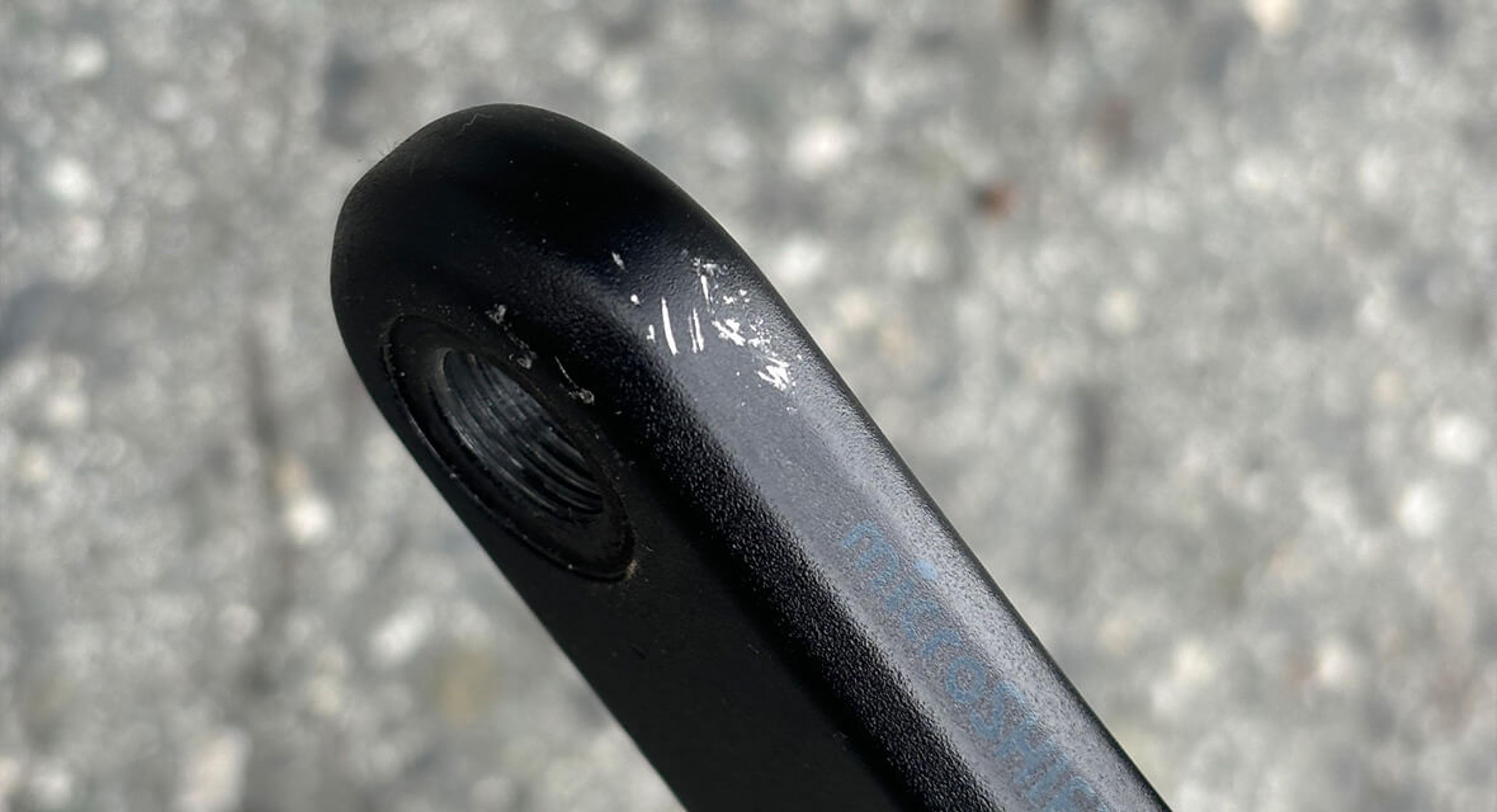

Frame and Ritchey components are covered under structural warranty, however paint warranty is void. Please note the paint scuffs/chips on the dropout, seatstay bridge, seatstay, chainstay, crank, headtube, and fork blade.
BLEM FRAMESET: Final Sale – No returns
Tech Specs
Logic Features
WCS Logic Tubing
Ritchey's proprietary and triple-butted steel tubing developed specifically for the TIG welding process to Tom's specifications.
Integrated Carbon Crown
Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.
Geometry
Tech Manuals / Spare parts / Videos / Downloads
Drawings / Manuals / Guides
Spare Parts
WCS Headset Cartridge Bearing
- Size: 41.8/30.5/8mm 45°/45°
- QTY per Pack: 1
Comp Cartridge Headset Bearing
- Size: 41.8/30.5/8mm 45°/45°
- QTY per Pack: 1
Derailleur Hanger for Steel Frames
Buy nowFrame Protectors Kit
Buy nowFork Replacement Thru Axle
Buy nowFrame Thru Axle
- For: 12x142mm TA frames
Compatible Headsets
WCS Integrated IS Upper Headset
- SHIS: IS42/28.6
- Stack Height: 9.1 mm
WCS Integrated IS Upper Headset
- SHIS: IS42/28.6
- Stack Height: 16.0 mm
WCS Integrated IS Lower Headset
- SHIS: IS42/30
Comp Cartridge Integrated IS Upper Headset
- SHIS: IS42/28.6
- Stack Height: 9.1 mm
Comp Cartridge Integrated IS Upper Headset
- SHIS: IS42/28.6
- Stack Height: 16.0 mm
Classic Integrated IS Upper Headset
- SHIS: IS42/28.6
Comp Cartridge Integrated IS Lower Headset
- SHIS: IS42/30
Comp Integrated IS Headset
- SHIS: IS42/28.6 | IS42/30
- Stack Height: 6.8 mm
