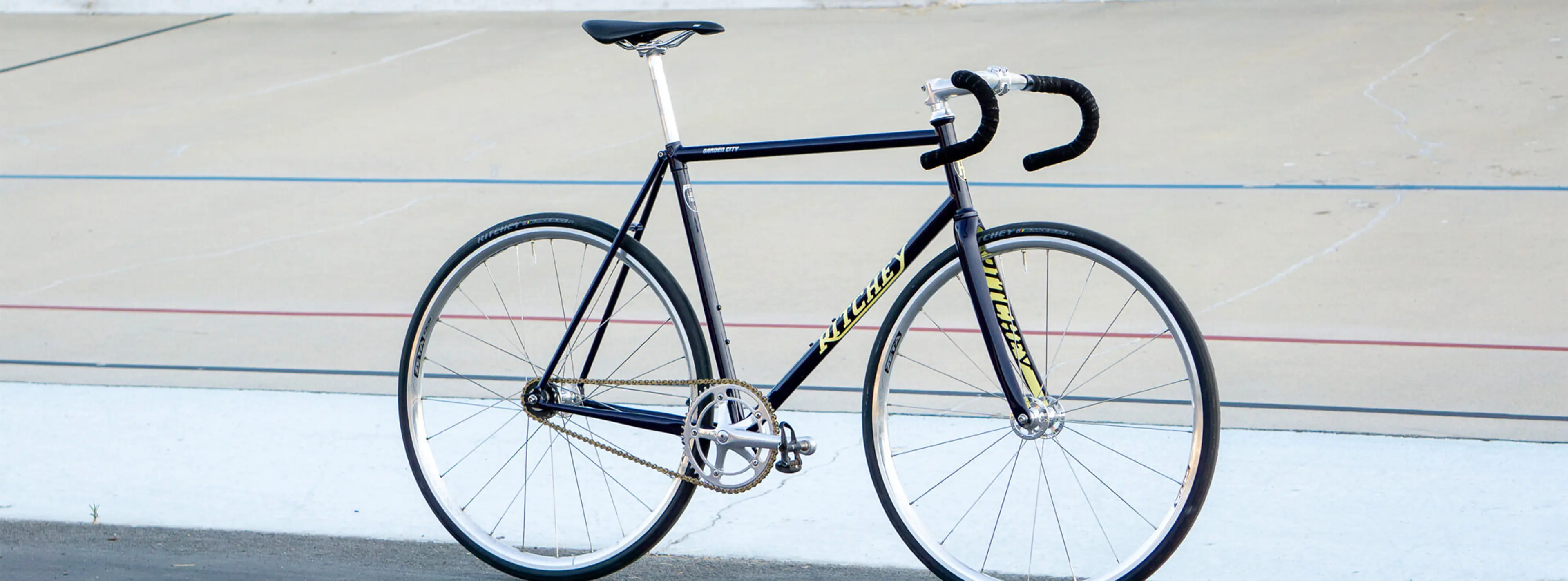

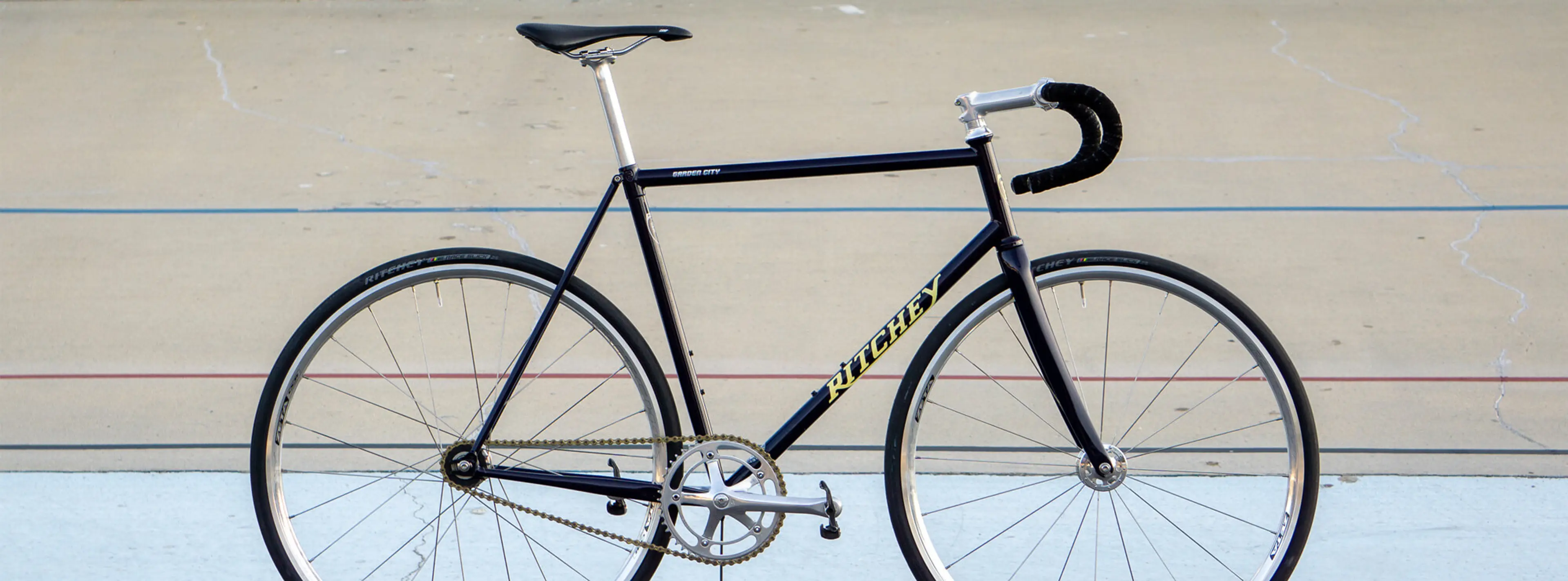

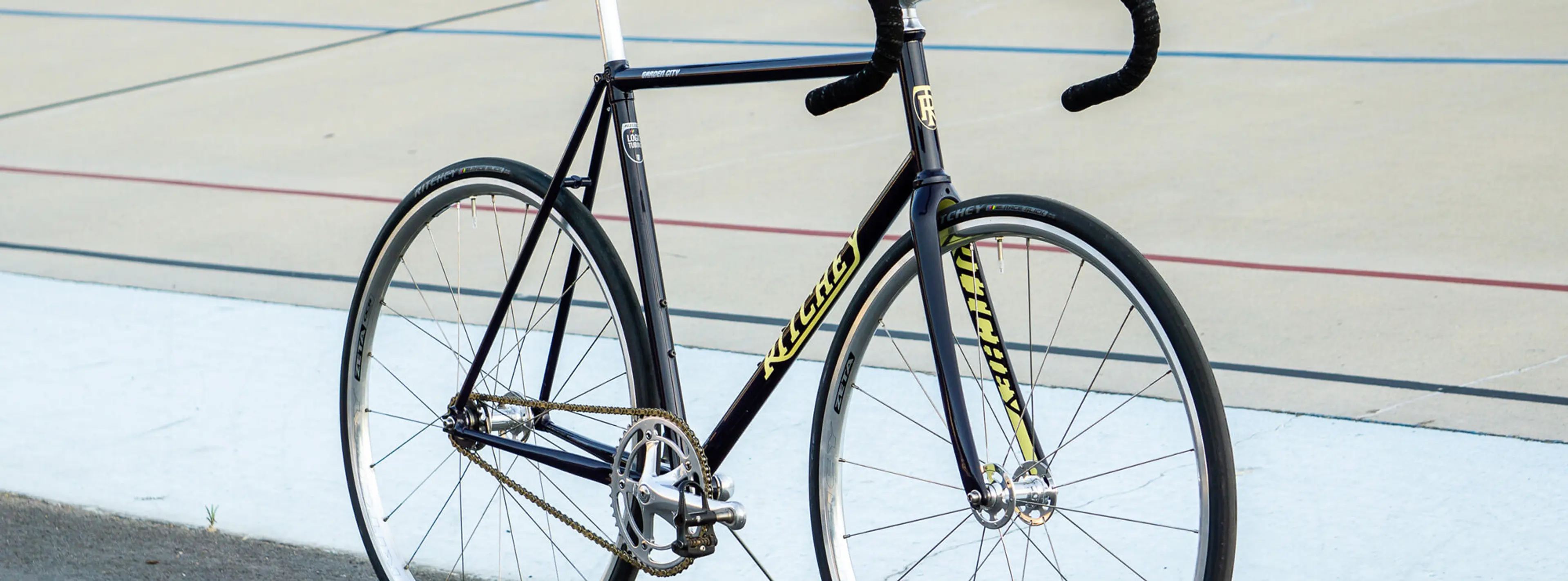

Garden City Frameset

Size

Description

They say less is more. In the case of Garden City, this is especially true. It’s also the joy associated with the freedom of cycling distilled to one single gear. However, don’t let its simplicity fool you, Garden City is more than it seems. A burgeoning velodrome champion? Yes. Urban commuter? Absolutely. Off-season trainer? It worked for Coppi!

A contemporary version of the multifaceted fixie, Garden City is as much a track bike as it is anything you want it to be. The supple yet responsive triple butted frameset easily clears a 30c tire. Drilled for bottles and brakes, it's ready for more than just a cross town commute. With no restriction on how you build it or ride it, Garden City is testament to less really being more.

The Garden City is a limited edition with 100 uniquely numbered frames produced.

Tech Specs

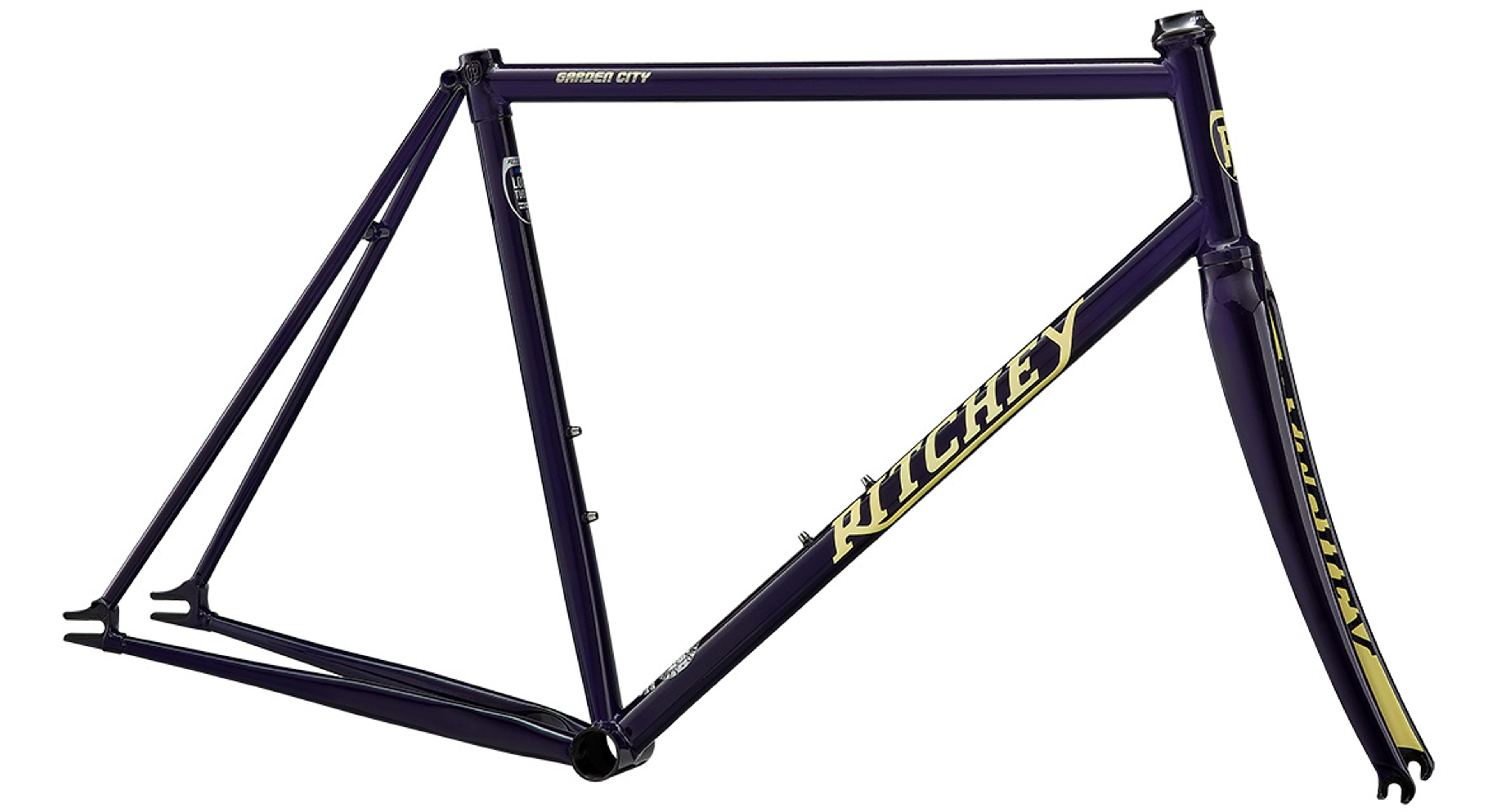

Frame
Materialheat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Ultra-light forged and machined straight 1-1/8" headtube
Electrophoretic Deposition (EPD Coat) treated for corrosion resistance
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
Bottom bracket68mm - English threaded
Crankset maximum ring size55t
Chainline49mm
Bottle cage mounts2

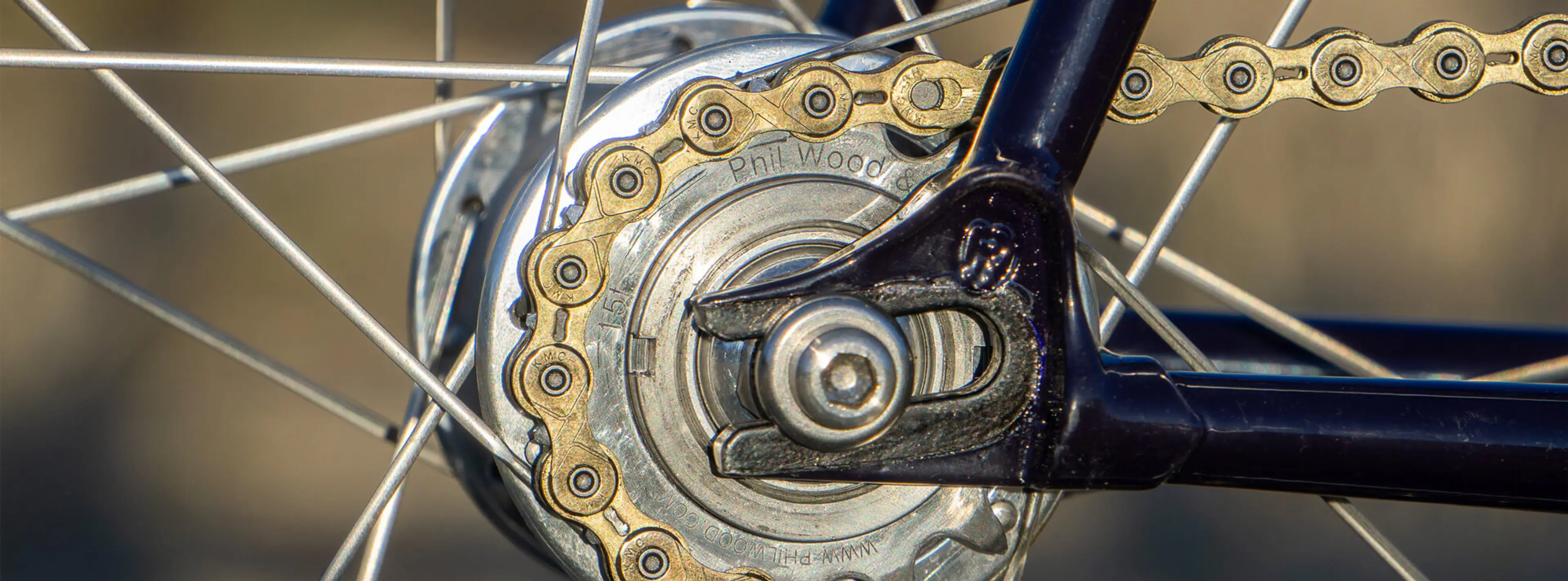

Dropouthorizontal 120mm Bolt On
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
Fork
Ritchey Comp Carbon Road Fork included 1-1/8" straight steerer
Steerer length300mm
Axle-crown368mm
Rake/Offset43mm
30mm maximum spacers below stem
Standard quick release
Tire Compatibility
Wheel and tire compatibility700 x 28c tire clearance (depending on tire/rim manufacturer)
Frame spacing38mm
Fork spacing32mm
Details
SizesS/M/L/XL
Frame weight1,950g (size L)
Fork weight525g (uncut steerer)
ColorMidnight Violet and Moon Yellow

Logic Features

WCS Logic Tubing

WCS Logic Tubing

Ritchey's proprietary and triple-butted steel tubing developed specifically for the TIG welding process to Tom's specifications.

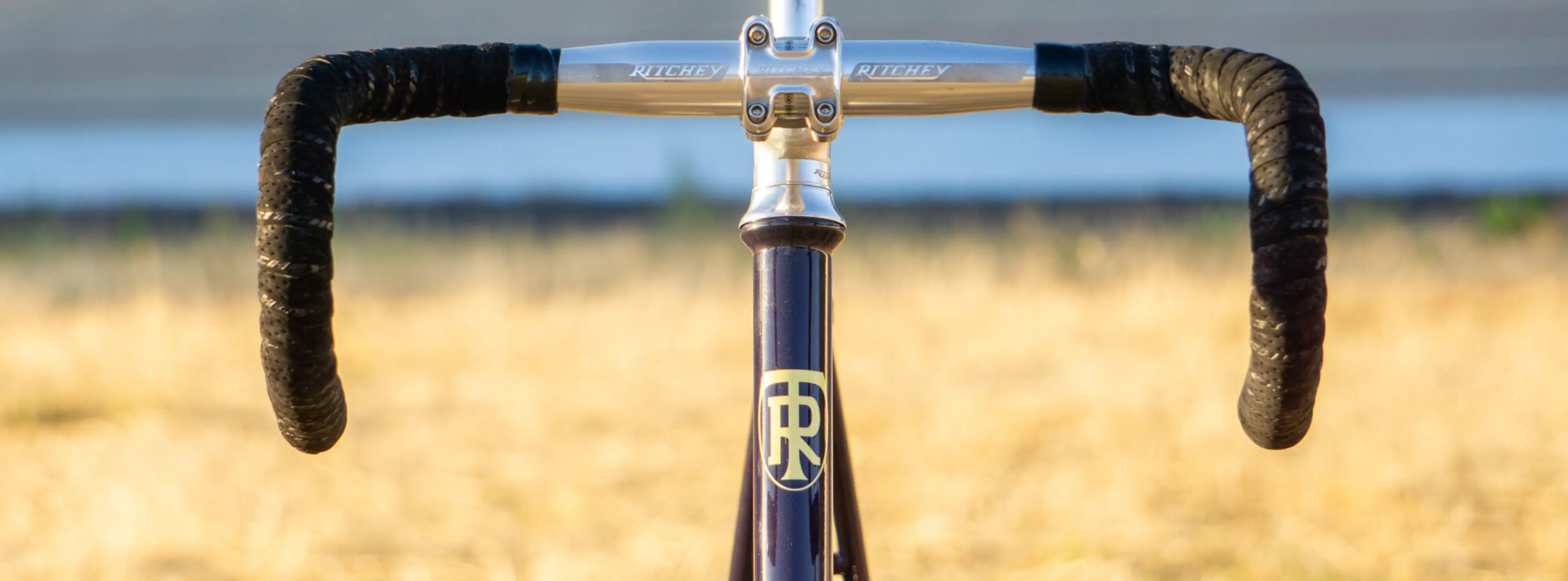

Integrated Carbon crown

Integrated Carbon Crown

Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.

Geometry

  • Design
Frame Size
S
M
L
XL
A
Top tube (effective)
532
551
568
585
B
Top tube (actual)
526
543
559
577
C
Seat tube (c-t)
485
510
540
570
D
Seat tube angle
74.5°
74°
74°
74°
E
Head tube length
115
140
170
200
F
Head tube angle
73°
73.5°
74°
74°
G
BB drop
55
55
55
55
H
Chainstay
395
395
395
395
I
Wheelbase
966
976
988
1005
J
Standover height
764
788
818
847
K
Stack
509
534
565
594
L
Reach
391
398
406
415
M
Fork rake
43
43
43
43
Axle to crown
369
369
369
369
Post diameter
27.2
27.2
27.2
27.2
