Ascent Frameset

Size

Description

We warmly welcome the legendary Ascent back into the Ritchey line-up. Inspired by the experiences of life, the new Ritchey Ascent invites you to chase your own life experiences out on those unexplored passes, winding roads and endless trails. The adventurous soul of the of the original Ascent remains, while expanding its adaptability with modern features and much-requested details.

Tom Ritchey loves experiencing all sorts of bicycle adventures - especially dirt – seeking out winding dirt roads, cruising along gravel lanes, and ripping flowy singletrack. He designed this latest version of the Ascent to be a do-it-all adventure bike so that others can share the same thrills of adventure while also enjoying the renowned Ritchey ride experience.

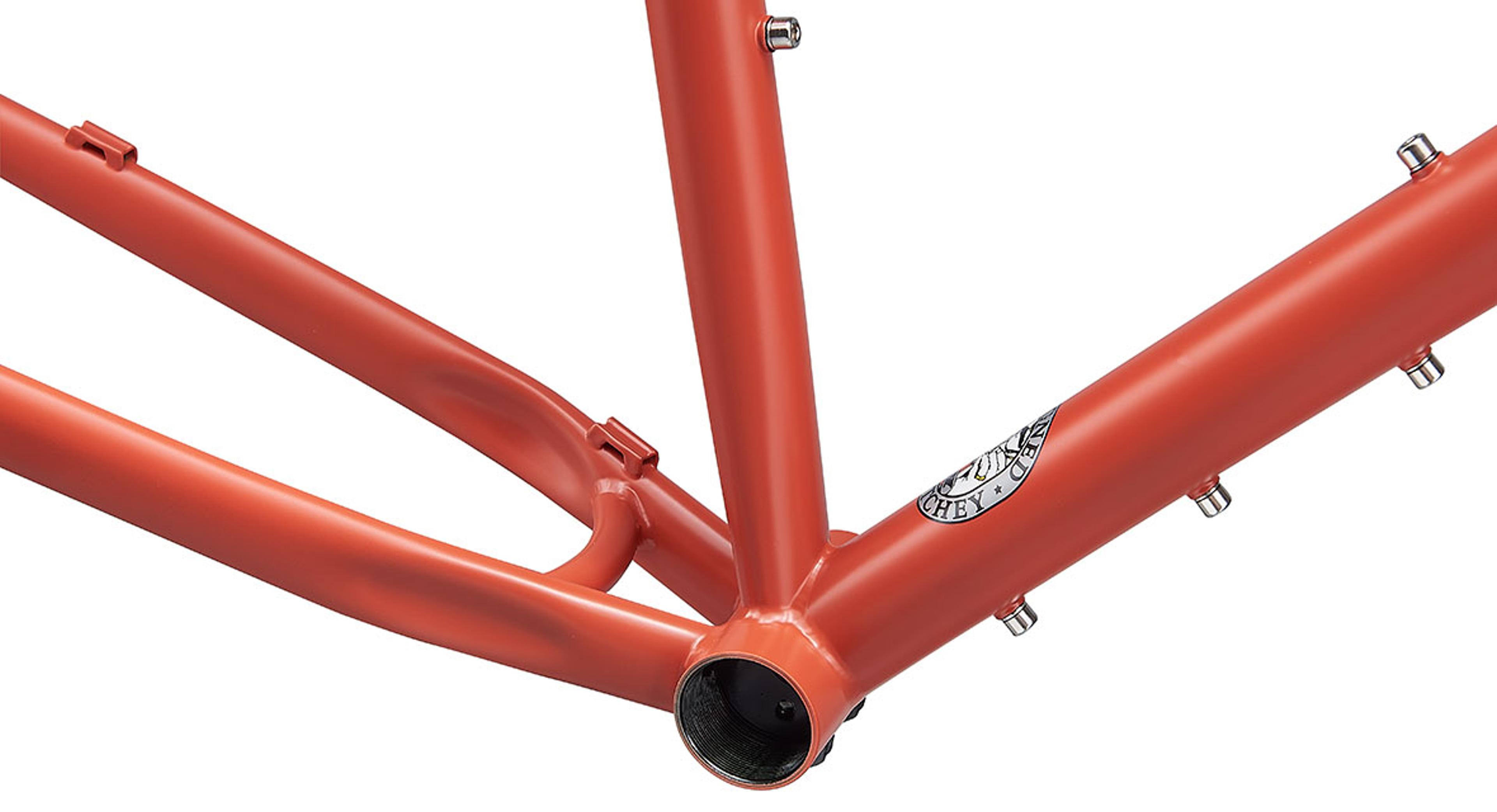

The new Ascent is more adaptable than ever. The frame is tig-welded with heat-treated, triple-butted Ritchey Logic steel tubing that features rack and fender mounts and a multi-purpose mount under the downtube, while a new Ritchey steel fork offers up multi-purpose, rack, fender and dynamo light mounts. Other notable features of the new Ritchey Ascent include post-mount brake compatibility, 148mm spacing and an external seat collar.

Throw a mountain bike bar on it and some 27.5" wheels for more trail-oriented adventures. Or ride it with drop bars and 29" wheels for some longer distance rough road riding. However you choose to roll, your riding possibilities are limitless atop the new Ritchey Ascent.

  • Includes rack and fender mounts, 3 multi-purpose mounts (2 fork, 1 frame) and threaded crown port
  • Features the new Ritchey steel fork with an 1-1/8" straight steerer
  • Fits 27.5" or 29" wheels and tires

Tech Specs

Frame
Materialheat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Ultra-light forged and machined straight 1-1/8" headtube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Seat tube clamp size28.6mm (2.5Nm max for derailleur clamps and chain guides)
27.2mm seat tube with replaceable seat collar (max torque setting: 6Nm)
Bottom bracket73mm - English threaded
BOOST 148mm spacing (12mm alloy thru-axle included)
Crankset min/max ring size - single24 to 40t / double: 24/34 to 28/38t
Can accommodate 1X or 2X chainrings (Side Swing front derailleur required for double)
Chainline52mm
Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Bottle cage mounts2
Multi-purpose mount underside of downtube
Rack and fender mounts
External cable routing (continuous housing)
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
Replaceable stainless-steel derailleur hanger
Fork
Ritchey steel fork with multi-purpose, rack, fender and threaded crown port
1-1/8" straight steerer
Steerer length300mm
Axle-crown435mm
Rake/Offset52mm
BOOST 110mm spacing (15mm alloy thru-axle included)
Tire Compatibility
Wheel and tire compatibility27.5" x 2.6" or 29" x 2.6" (depending on tire/rim manufacturer)
Frame spacing78mm
Fork spacing78mm
Brake Compatibility
Post-mount brakes160mm (front 180mm max - adaptors available separately)
Details
SizesS / M / L / XL
Frame weight2,400g (size L - w/o thru-axle)
Fork weight1125g (with uncut steerer / not including axle)
ColorDesert Dust

Logic Features

WCS Logic Tubing

WCS Logic Tubing

Ritchey's proprietary and triple-butted steel tubing developed specifically for the TIG welding process to Tom's specifications.

Multipurpose Mounts

Multipurpose Mounts

Triple mounts on each fork leg offer the ability to carry...well, anything!

Ritchey Bike Check: Introducing the 2021 Ascent

Geometry

  • Design
  • Design
Frame Size
S
M
L
XL
A
Top tube (effective)
541
556
575
590
B
Top tube (actual)
529
534
551
566
C
Seat tube (c-t)
430
465
500
535
D
Seat tube angle
73.5°
73.5°
73°
73°
E
Head tube length
115
130
150
170
F
Head tube angle
70°
70.5°
70.5°
71°
G
BB drop
68
68
68
68
H
Chainstay
463
463
463
463
I
Wheelbase
1067
1078
1092
1103
J
Standover height
769
796
822
851
K
Stack
572
589
607
628
L
Reach
370
381
388
397
M
Fork rake
52
52
52
52
Axle to crown
435
435
435
435
Post diameter
27.2
27.2
27.2
27.2
